Choosing the wrong diffuser material can result in false bright spots in machine vision systems or noticeably uneven illumination in LED fixtures. Opal Glass and Frosted Glass may both appear to be “translucent, light-softening” materials at first glance, but the two rely on fundamentally different physical mechanisms to achieve light diffusion—a distinction that directly determines whether they can meet the requirements of precision optical systems.
This article examines scattering mechanism, base glass type, manufacturing process, optical performance, and long-term stability to help you determine which material is right for your application, along with common selection mistakes, comparisons with competing materials, and guidance on custom solutions.
Quick Comparison Table
Performance Parameter | Opal Glass | Frosted Glass |
Material Type | Glass with internal opacification/phase-separated structure | Surface-treated transparent glass |

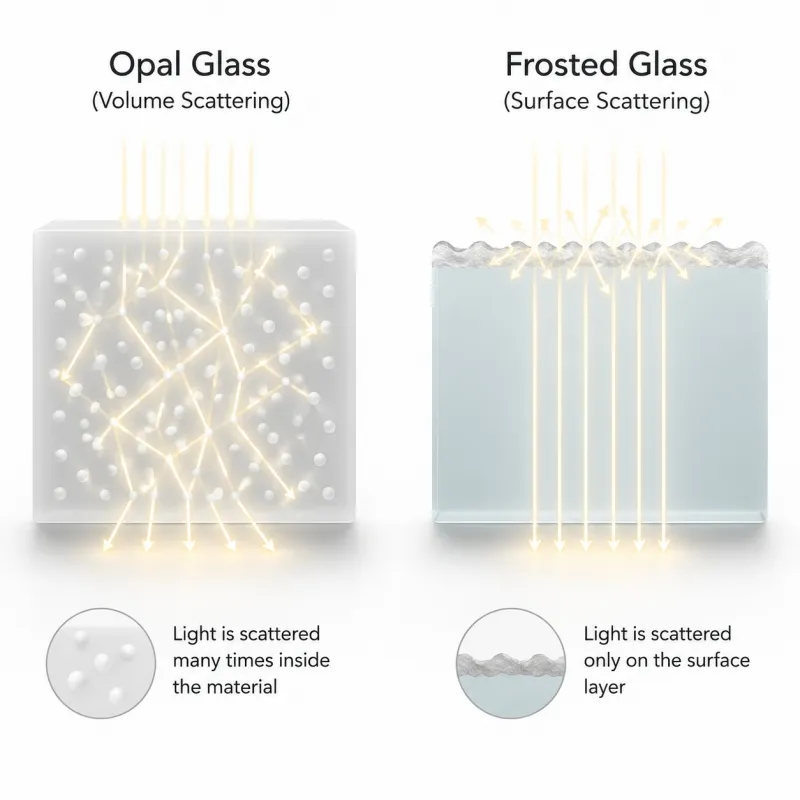

Diffusion Mechanism | Volume Scattering | Surface Scattering |
Haze | ~90–98% (approaching Lambertian diffusion) | ~60–90% (varies significantly with etching/blasting depth) |
Transmission | ~50–70% | ~60–90% (varies with processing depth and glass thickness) |
Diffusion Angle | Approaching a full 180° Lambertian distribution (near-isotropic diffusion) | Noticeably narrower than opal glass; specific angle varies with surface roughness, with lower consistency |
Common Test Standards | ASTM D1003 (haze/transmission, commonly used for diffuser materials), ISO 13468 (transmission) | Same as left |
Optical Consistency | Relatively high; scattering occurs throughout the thickness | More heavily influenced by surface processing quality |
Common Manufacturing Process | Opacifying agent added during glass melting | Acid etching/sandblasting /mechanical grinding |
Common Base Glass | Soda-lime glass/borosilicate glass | Soda-lime glass/borosilicate glass |
Typical Applications | LED diffuser panels, machine vision illumination, medical lighting, display backlighting | Partitions, bathroom glass, glass doors, decorative panels |
📌 The haze, transmission, and diffusion angle values in the table above represent typical ranges commonly found in publicly available industry data and diffuser supplier specifications, intended to help readers establish an order-of-magnitude understanding. For specific projects, actual test reports should be used as the final basis for material selection rather than these reference values.
What is Opal Glass?
Opal Glass is a type of glass that achieves light diffusion through its internal material structure.
Working Principle
During the glass melting stage, opacifying agents are added, causing the molten glass to form microscopic particles or a phase-separated structure. After cooling and annealing, these internal structures are uniformly distributed throughout the material’s thickness. As light passes through, it undergoes continuous scattering within the material rather than a single deflection at the surface—this is the origin of the term “Volume Scattering.”
Direct Benefit of This Mechanism
Because the diffusing structure exists within the material rather than at the surface, the diffusion performance remains consistent even after subsequent processing such as cutting or polishing, without fluctuating due to changes in surface condition.
Key Factors Affecting Its Optical Performance:
- Chemical composition ratio
- Opacifying agent content
- Heat treatment process
- Glass thickness
- Production consistency
Because the volume-scattering mechanism naturally lends itself to uniformity throughout the thickness direction, Opal Glass is commonly used in applications with stringent requirements for light uniformity and hot-spot control, such as LED diffuser panels, medical lighting equipment, and optical components in imaging systems.
What is Frosted Glass?
Frosted Glass is a material that achieves light diffusion through secondary processing on the surface of transparent glass, forming a microscopically rough structure.
Common Processing Methods
Process | Principle |
Acid Etching | Chemically corrodes the glass surface to form a uniform microstructure |
Sandblasting | High-velocity abrasive particles impact the surface to create a rough texture |
Mechanical Grinding | Mechanically alters the surface condition |
Because Frosted Glass’s diffusion effect relies entirely on surface treatment, the interior of the glass remains transparent—a fundamental difference from Opal Glass’s volume-scattering mechanism. As a result, Frosted Glass’s final optical performance (transmission, haze, scattering angle) varies with processing parameters, and consistency is generally inferior to that of volume-scattering materials.
This type of material is widely used in applications where optical precision is less critical, and the focus is instead on “privacy and decorative effect,” such as office partitions, bathroom glass, glass doors, and interior decorative lighting.
Base Glass Types: Soda-Lime vs Borosilicate
Whether it’s Opal Glass’s volume scattering or Frosted Glass’s surface scattering, both can be implemented on different base glass substrates—and the base glass type itself directly determines the product’s heat resistance, chemical stability, and cost, a variable that is easily overlooked during material selection.
Soda-Lime Glass
Lower cost with mature processing technology, making it the most common substrate choice, suitable for general lighting, decorative panels, and other applications with modest heat- and chemical-resistance requirements. However, its heat resistance and chemical corrosion resistance are relatively weaker, and performance may degrade after prolonged exposure to high temperatures or corrosive chemical environments.
Borosilicate Glass
Features a lower coefficient of thermal expansion (CTE) and better high-temperature and chemical stability, making it suitable for high-thermal-load LED light sources, medical lighting equipment, and other applications with demanding requirements for thermal cycling and long-term reliability. Correspondingly, the material and processing costs of borosilicate glass are typically higher as well.
In terms of typical parameters, soda-lime glass has a CTE of approximately 8.5–9.5×10⁻⁶/K, can withstand a rapid heating/cooling temperature differential of approximately 40–60°C, and its recommended continuous operating temperature is generally kept below 120°C. Borosilicate glass has a CTE of approximately 3.3×10⁻⁶/K—roughly one-third that of soda-lime glass—can withstand a temperature differential shock of approximately 150–170°C without easily cracking, and its continuous operating temperature ceiling can typically reach above 200°C. Therefore, in high-thermal-load LED light sources or applications involving abrupt temperature changes, borosilicate glass’s stability advantage becomes more pronounced.
Accordingly, beyond determining whether an Opal (volume-scattering) or Frosted (surface-scattering) solution is appropriate, it is also recommended to confirm whether the base glass type meets the system’s operating temperature range and environmental requirements—this point is discussed further in “Common Mistakes” below.
Performance Comparison of Opal Glass vs Frosted Glass
Light Transmission & Haze
The volume-scattering structure allows Opal Glass to progressively reduce light directionality throughout its entire thickness, so while it reduces direct transmitted light, it typically maintains good light utilization efficiency and produces a softer output beam.
Frosted Glass’s transmission efficiency, by contrast, depends more heavily on the degree of surface treatment—some light is reflected or otherwise lost at the rough surface, so transmission and haze values may vary noticeably between batches or processing vendors.
For systems that need to balance both “diffusion effect” and “light utilization efficiency” (such as LED lighting and optical equipment), the volume-scattering mechanism generally makes it easier to achieve stable overall performance.
Diffusion Uniformity
This is the most intuitive difference between the two materials. Because scattering in Opal Glass occurs throughout the entire material volume, it effectively reduces localized bright spots and light intensity non-uniformity—critical for display backlighting, machine vision illumination, and precision lighting systems, which have strict requirements for light intensity consistency across the entire field of view.
Frosted Glass’s diffusion effect, on the other hand, depends on whether the surface texture is uniform. Once a defect or texture inconsistency occurs in a given area, the scattering effect in that region will differ from surrounding areas, which can directly impact image quality in precision imaging applications.
Glare Control
Glare typically originates from intense direct light entering the viewing area. Through continuous internal scattering, Opal Glass effectively disperses localized high-brightness regions, producing a more comfortable and stable output beam.
Frosted Glass reduces direct light through surface scattering, but if the surface roughness treatment is excessive, it may also reduce overall transparency and introduce unnecessary light loss, requiring a trade-off between glare control and light efficiency.
Weathering & Long-Term Stability
Beyond initial optical performance, long-term stability after extended use is also worth considering, particularly for outdoor or industrial environment applications.
For Opal Glass, the risk to monitor is whether the opacifying agent undergoes slight discoloration under prolonged UV exposure or high-temperature environments, or whether haze drifts over time; for Frosted Glass, the risk lies in whether the surface microstructure gradually wears smooth from repeated long-term cleaning, wiping, or mechanical abrasion, causing the scattering effect to diminish and transparency to increase.
Generally, short-term indoor decorative applications (such as office partitions and interior lighting panels) are less affected by these aging factors, whereas outdoor lighting, industrial inspection equipment, and other applications with long-term exposure to temperature/humidity fluctuations or frequent cleaning should prioritize evaluating material weathering resistance during the selection stage.
Unlike metrics such as haze and transmission, there is currently no unified, publicly available industry benchmark for the weathering and aging performance of glass diffuser materials, as opacifying agent formulations and surface treatment processes vary considerably between manufacturers. It is therefore recommended to rely on accelerated aging test reports or warranty terms provided by the supplier for this criterion, rather than applying generic industry values.
How to Choose Application Scenarios
When to Choose Opal Glass
If your system requires:
- Precise control of light distribution
- Stable, repeatable diffusion effects
- Uniform illumination output (avoiding hot spots/bright spots)
- Consistent optical performance over long-term use
Opal Glass is generally the more suitable choice, with typical applications including LED optical diffuser panels, medical lighting equipment, display backlighting systems, and machine vision illumination components. In machine vision systems, for example, if the light source exhibits noticeable bright/dark regions, it can directly affect the accuracy of image interpretation by the camera; using a diffuser element with a volume-scattering structure can significantly improve this issue.
When to Choose Frosted Glass
If your goal is:
- Providing privacy
- Reducing transparency
- Achieving a decorative soft-light effect without stringent optical precision requirements
Frosted Glass is generally the more economical choice, with typical applications including office partitions, bathroom glass, glass doors, and decorative panels.
Regardless of which material is selected, engineers are advised to carefully verify the following parameters during selection: Transmission, Haze, Diffusion Angle, Thickness Tolerance, Surface Quality, and Dimensional Accuracy.
Common Mistakes in Diffuser Material Selection
Mistake 1: Assuming Higher Haze Always Means Better Diffusion
Haze does reflect a material’s diffusion capability, but higher haze is not always better—excessively high haze often means more light is scattered back toward the incident direction, sacrificing transmission and reducing overall system light efficiency. Material selection should weigh the system’s actual requirements for “diffusion uniformity” versus “light utilization efficiency,” rather than simply pursuing the highest haze value.
Myth 2: Comparing only the Unit Price of Materials While Ignoring Other Factors
The procurement cost of diffuser glass should not be evaluated based on unit material price alone. If surface treatment precision, thickness tolerance, and similar requirements are overlooked during initial material selection, additional secondary processing or even rework may be required later, resulting in a higher overall cost. A more sound approach is to evaluate material cost, processing cost, and the total cost of ownership (TCO) over the long-term use of the product.
Mistake 3: Selecting Materials Based on Appearance Alone While Ignoring the Impact of Base Glass Type on Weathering Resistance
Opal and Frosted glass can appear visually similar, making it easy to overlook that the two may use different base glass substrates (soda-lime vs. borosilicate)—and the base glass type directly determines the product’s long-term performance in high-temperature or chemically corrosive environments (see “Base Glass Types” above for details). Selecting materials based solely on appearance or short-term performance may expose stability issues over the long term.
Opal/Frosted Glass vs Other Diffuser Materials
Beyond glass-based diffuser materials, several other common optical diffusion solutions exist on the market. Understanding their relative positioning can help inform a more comprehensive selection decision.
PC Diffuser Panels (Polycarbonate)
Lightweight with good impact resistance, suitable for applications with weight and safety requirements, but generally inferior to glass in terms of weathering resistance and long-term optical stability, with a greater tendency toward performance degradation under prolonged high-temperature or UV exposure.
PMMA (Acrylic) Diffuser Panels
Offer relatively high transmission and lower cost, making it a common choice for many entry-level lighting products, but have poor high-temperature resistance and are unsuitable for high-thermal-load applications such as high-power LEDs.
Ground Glass
Similar in process to Frosted Glass, but typically ground to a finer finish with higher surface consistency, commonly used in precision optical testing and laboratory applications. Because the name and appearance closely resemble Frosted Glass, the two are easily confused; it is recommended to clearly distinguish the processing precision grade during actual material selection.
If your application is better suited to a non-glass diffuser solution, you may also contact the engineering team for further evaluation.
Custom Diffuser Solutions
Standard-specification diffuser glass does not necessarily meet the optical and structural requirements of every system, making customization a common requirement in precision optical projects.
Customizable Dimensions Include:
- Size and thickness
- Haze/transmission range
- Secondary surface treatment (e.g., re-polishing the surface of Opal Glass to further optimize appearance and optical consistency)
- Base glass type selection (soda-lime / borosilicate)
In terms of processing capability, customizing diffuser glass likewise requires strict control of thickness tolerance, dimensional accuracy, and surface quality to ensure consistent optical performance across batches—similar in logic to precision optical component manufacturing, except that the control metrics center on transmission, haze, and diffusion angle.
Based on common industry specifications, standard diffuser glass thickness typically ranges from 0.7–25mm, with diffuser panels commonly concentrated in the 1–6mm range. In terms of thickness tolerance, frosted/sandblasted surface-scattering glass can typically achieve approximately +0.25/-0.00mm, while Opal (Flashed Opal) glass—due to the additional opacified surface layer—typically has a thickness tolerance of around ±0.30mm; overall dimensional tolerance can generally be controlled to approximately ±0.2mm. Specific customizable ranges should still be confirmed with the supplier based on size, thickness, and processing technique.
Need a custom Opal Glass or Frosted Glass solution? [Get an Optiera custom quote and specification consultation →]
FAQ
Can frosted glass be used for LED diffusion?
It can be used to a certain extent, but due to its surface-scattering mechanism, uniformity is highly dependent on processing quality. For lighting systems requiring hotspot-free, highly consistent output, Opal Glass is generally the safer choice.
What is the haze value of opal glass?
The haze of Opal Glass typically ranges between 90–98%, classifying it as a high-haze material approaching Lambertian diffusion. Specific values vary by product formulation and thickness; supplier-measured data (typically tested per ASTM D1003) should be used as the reference.
Is opal glass more expensive than frosted glass?
Generally, because Opal Glass requires control of material composition during the melting stage, its material and production costs may exceed those of surface-treated Frosted Glass; however, for systems requiring long-term stable optical performance, the total cost of ownership—accounting for yield and service life—is not necessarily higher overall.
Does frosted glass provide the same uniformity as opal glass?
Generally, no. Frosted Glass’s uniformity is constrained by the consistency of surface processing, whereas Opal Glass relies on overall internal scattering, which theoretically makes it easier to achieve stable, uniform light output.
Which material is better for machine vision lighting?
For most machine vision lighting applications, Opal Glass is more suitable, as its internal scattering structure effectively reduces light-source brightness non-uniformity and improves the stability of image interpretation.
What’s the difference between frosted glass and ground glass?
The two processes are similar, both achieving scattering through surface treatment, but Ground Glass is typically ground to a finer finish with higher surface consistency and is more often used in precision optical testing applications; Frosted Glass is more commonly found in architectural and decorative applications with relatively lower precision requirements.
Does opal glass yellow or discolor over time?
Whether discoloration occurs primarily depends on the opacifying agent formulation and the operating environment. There is a possibility of slight discoloration or haze drift under prolonged exposure to high temperatures or strong UV light; specific behavior should be assessed based on the supplier’s aging test data or actual environmental testing.
Can diffuser glass be customized in thickness or haze level?
Yes. Thickness, haze, transmission, and surface treatment method can generally all be customized according to system requirements; specific customizable ranges should be confirmed with the supplier’s engineering team early in the selection process.
Conclusion
The fundamental difference between Opal Glass and Frosted Glass lies in where light diffusion occurs: the former relies on volume scattering within the material, while the latter relies on surface scattering created through surface treatment. This mechanistic difference makes Opal Glass better suited—in terms of uniformity, stability, and long-term consistency—for precision optical applications such as LED lighting, machine vision, and medical lighting, while Frosted Glass, with its lower cost, is well suited to decorative and privacy applications with less stringent optical precision requirements.
Beyond the scattering mechanism itself, base glass type (soda-lime vs. borosilicate), long-term weathering resistance, and positioning relative to other diffuser materials such as PC, PMMA, and Ground Glass are all factors that should not be overlooked in a complete selection process. Rather than fixating on “which material is better,” the choice should be grounded in the specific system’s actual requirements for transmission, haze, diffusion uniformity, operating environment, and long-term stability.
