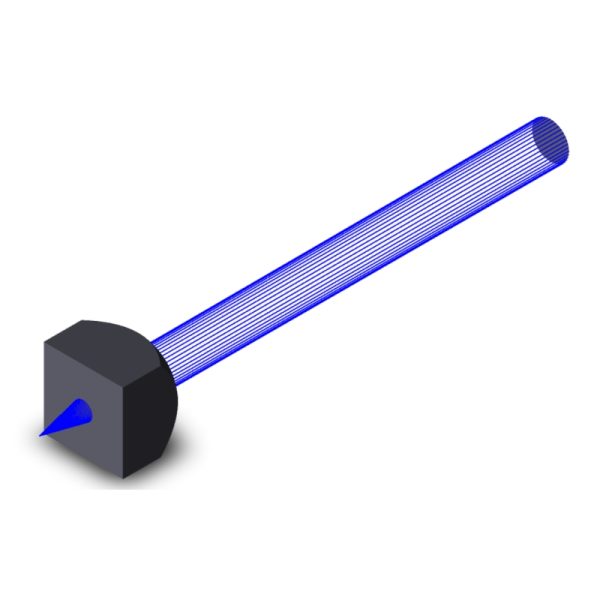

High-Precision Collimating Lens Micro Square C-Lens

Hobbite offers square and rectangular geometric formats to support flexible mechanical integration, where circular micro lenses cannot be tightly arranged. Coated and uncoated versions are also available for different transmission, power, and integration requirements.

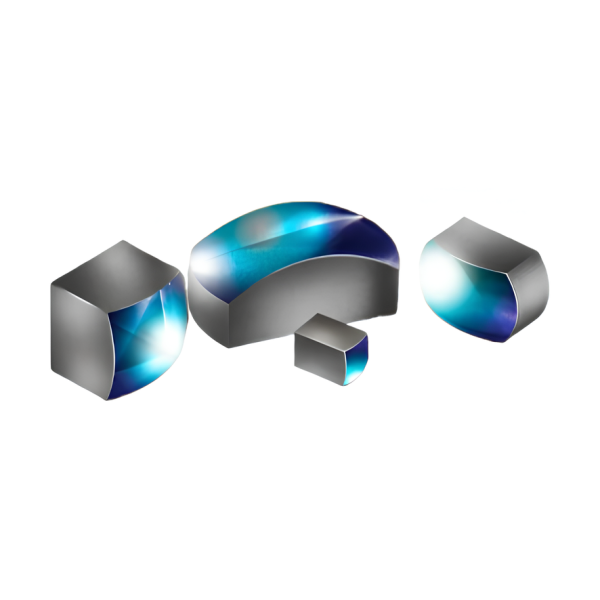

We Micro Square C-Lenses are manufactured from high-quality quartz or optical glass using advanced micro-polishing and IBS coating techniques. Their compact dimensions and planar edges make them ideal for photonic chips, LiDAR transmitters, optical communication devices, VCSEL/PD arrays, and dense optical modules where rectangular alignment surfaces provide mechanical advantages.

Why Hobbite?

1. 20 Years of Micro-Optics Manufacturing Experience

We specialize in miniature optical elements and precision micro-fabrication for communication, sensing, and industrial photonics.

2. High-Precision Manufacturing Capabilities

Ultra-precision polishing and ion-beam coating ensure accurate collimation, low surface error, and durable coating adhesion for micro-format lenses.

3. Strong Batch Consistency

Automated inspection and closed-loop process control ensure reliable performance for large-volume module production.

4. Whole Process Testing

Beam profiling, interferometry, and focal length measurement ensure a stable optical output.

5. Flexible and Fast Delivery

Support for small-batch prototype lenses, mass manufacturing, and consistent global delivery.

Customization Available

Optical Customization

• Working wavelengths: 850–2000 nm
• Aspheric or micro-cylindrical surfaces
• AR / BBAR / high-power laser coatings or uncoated versions
• Custom NA, working distance, and tolerance options

Structural Parameters Customization

• Shapes: Square, Rectangular
• Dimensions: 1 × 1 mm – 5 × 5 mm
• Thickness: 0.3–3 mm
• Alignment marks, edge chamfering, engraving
• Custom trays or reels for automated loading

OEM/ODM Support

• Optical path design
• Module-level integration support
• High-volume consistency control
• Capability to manufacture directly from customer drawings

Frequently Asked Questions (FAQs)

1. Does the Square C-Lens support different shapes?
   Yes, square and rectangular formats are available to match different module layouts.
2. Can I choose coated or uncoated versions?
   Yes, AR, BBAR, high-power coatings, or uncoated surfaces are available.
3. Can the Square C-Lens improve VCSEL/PD coupling efficiency?
   Yes, it reduces beam divergence and improves coupling stability.
4. What size should I choose?
   Lens dimensions are typically selected as 1.2–1.5× the beam diameter.
5. Do you support manufacturing based on customer drawings?
   Yes, we can fabricate directly from drawings.
