Optical Glass Light Guide Rods

Key Features

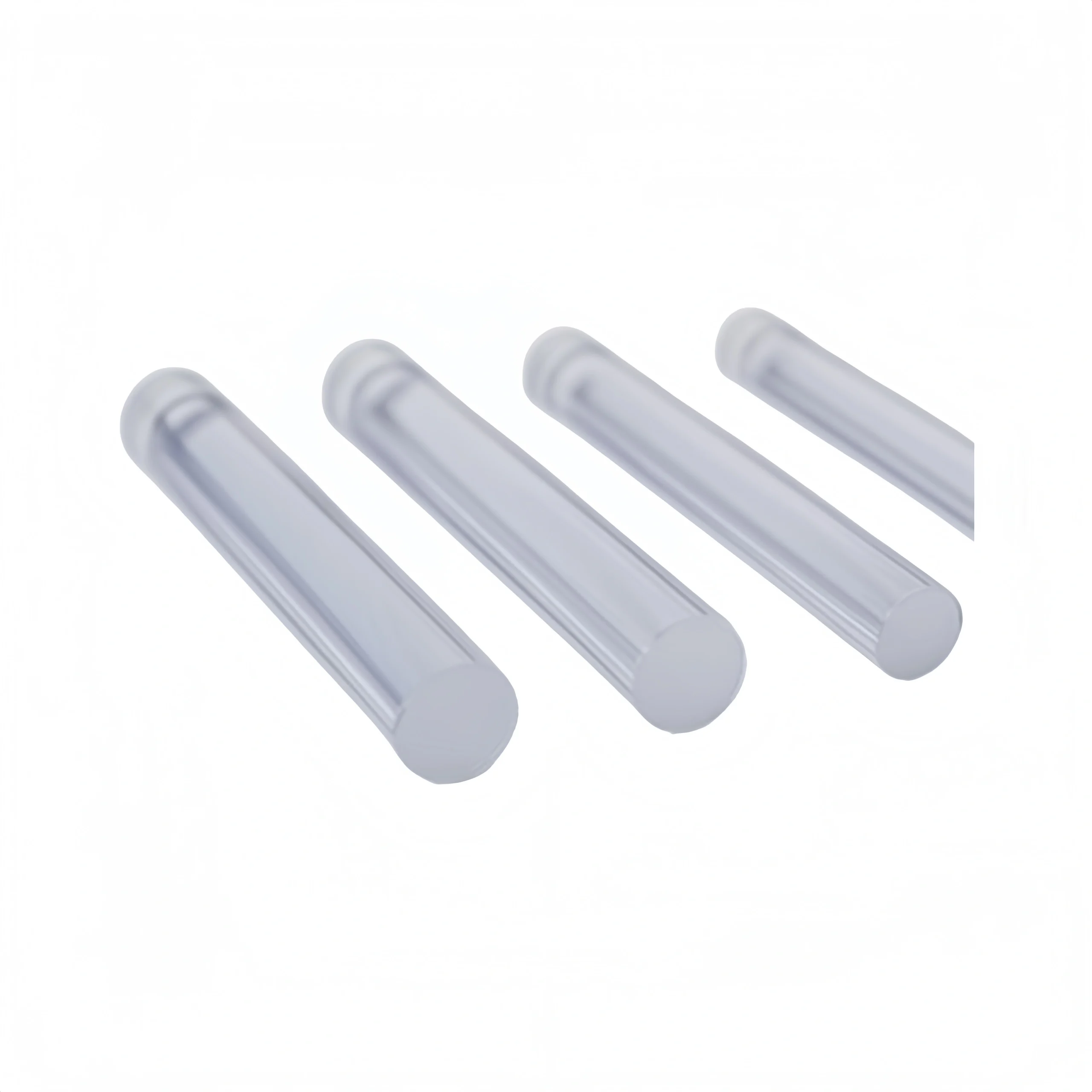

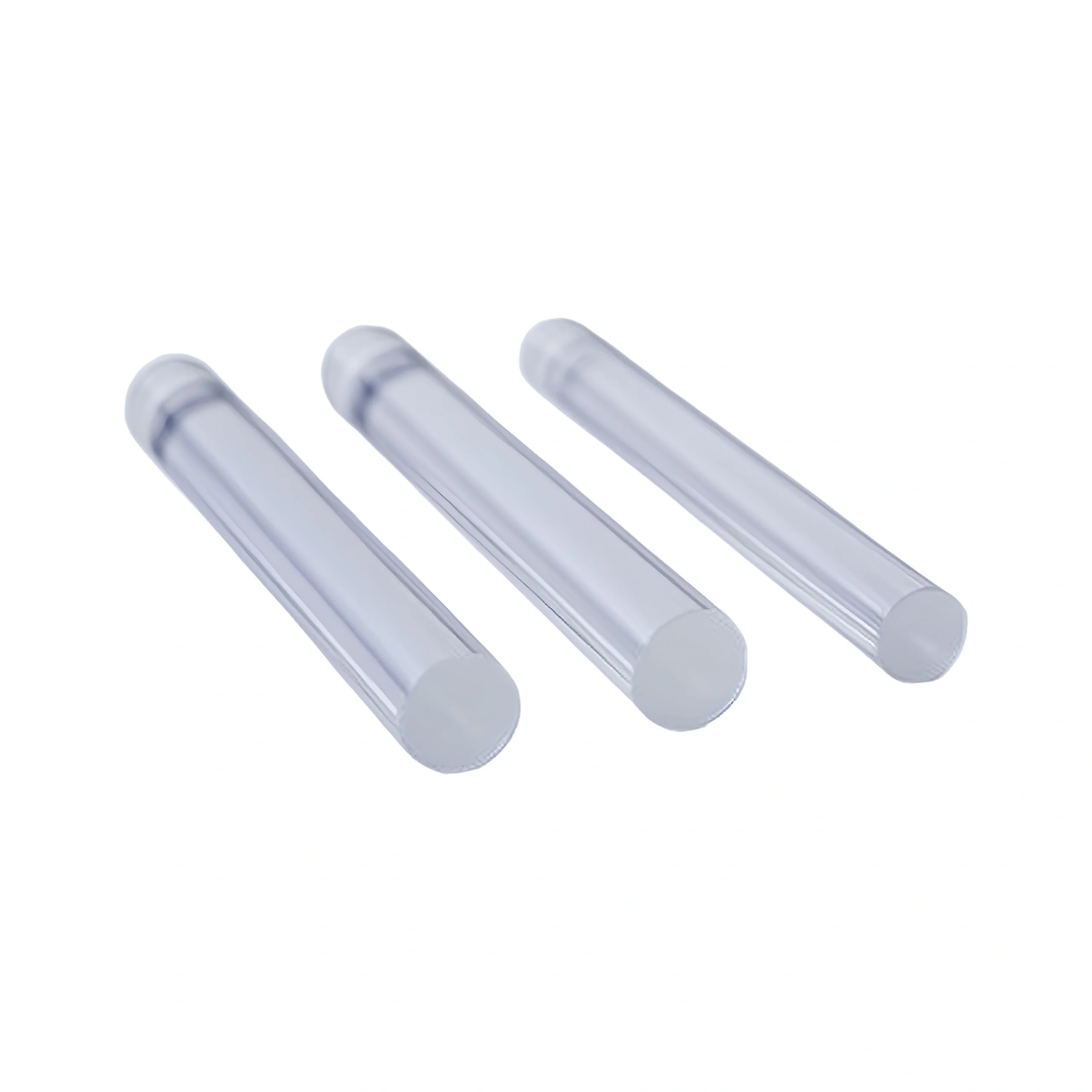

Optical glass light guide rods are long, thin optical parts that transmit light via total internal reflection. They efficiently send incoming light to a target spot. Here’s what makes them useful:

• Efficient light transmission, low loss: With high transmittance (≥92% for visible light) and total internal reflection, they pass 85%-95% of light—way better than regular plastic guides. Good for long-distance transmission (up to 1 meter).

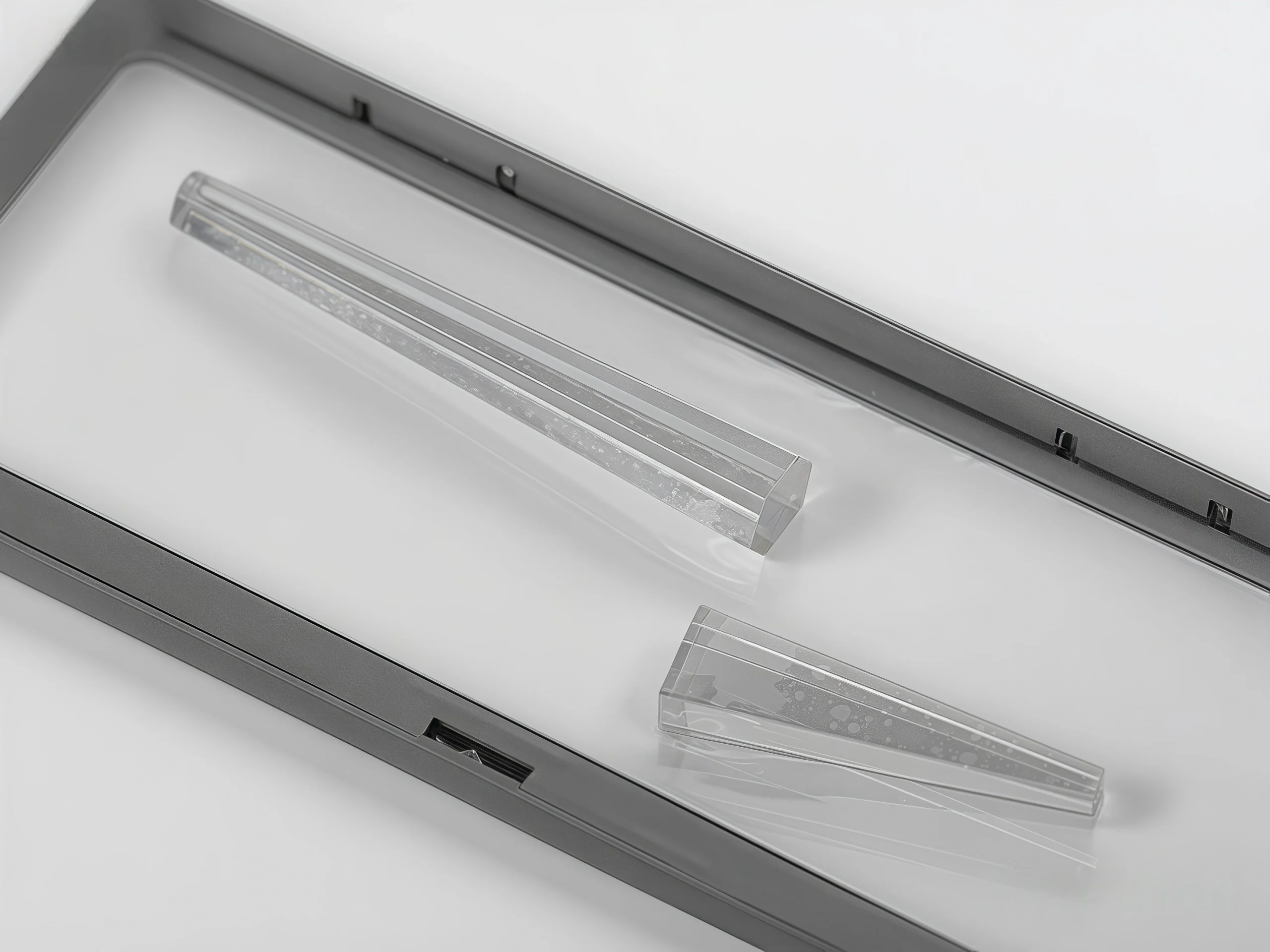

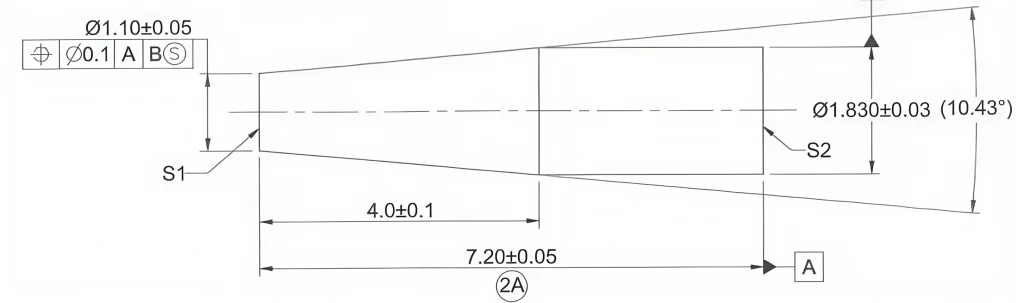

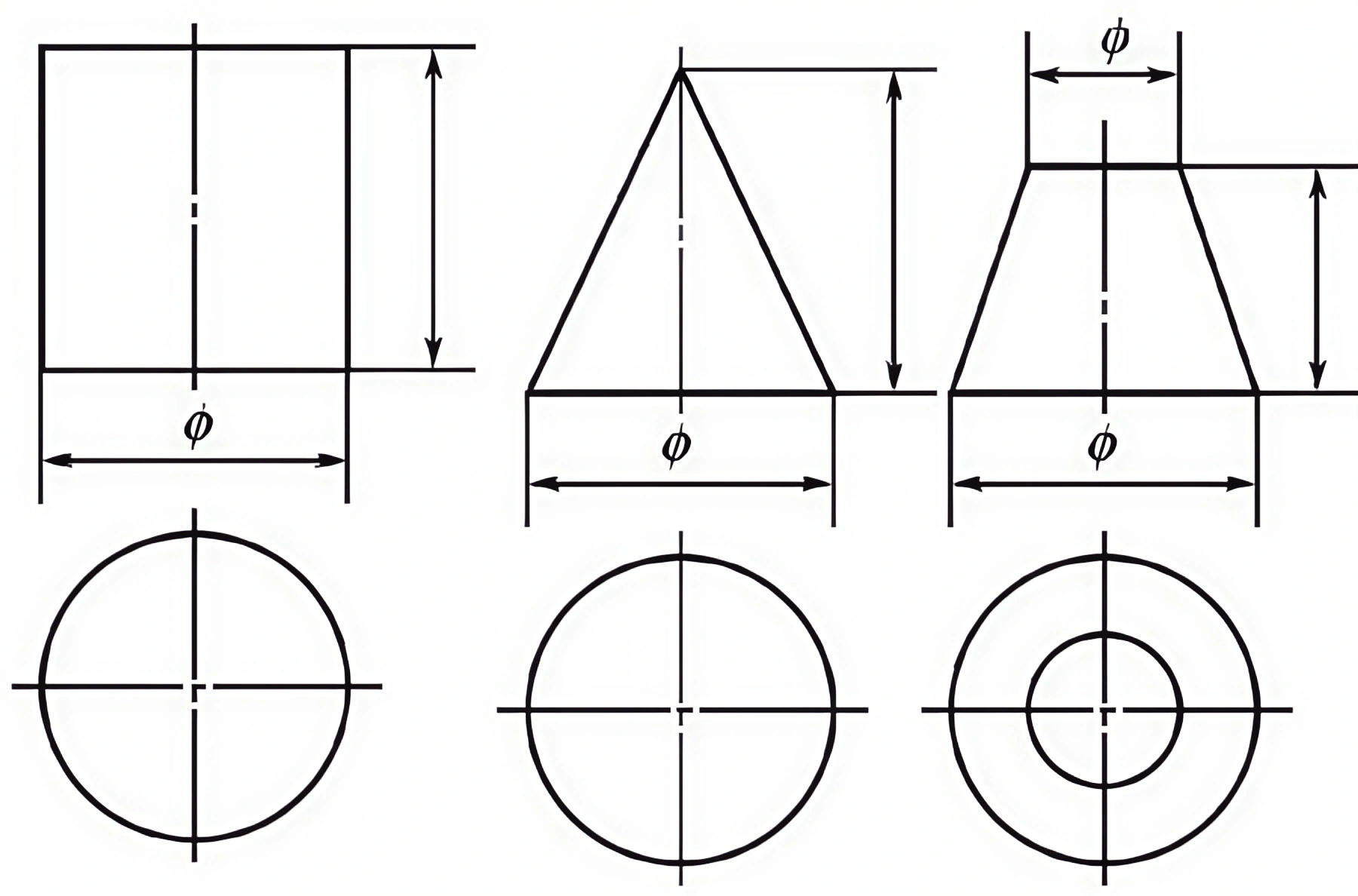

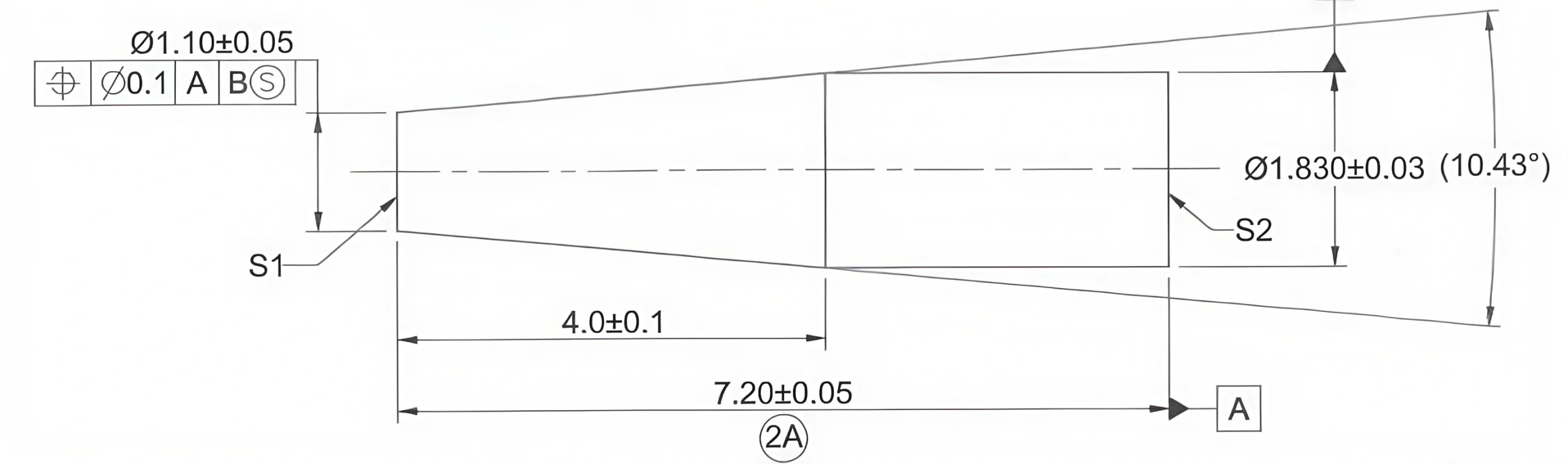

• Flexible structure, wide use: Comes in round, square, or custom shapes. Diameter/side length ranges from 1mm to 50mm. You can design their length and shape to fit device space, easily fitting into compact optical systems.
• Tough against the environment: Made of hard optical glass (like BK7 or fused silica), they handle high/low temps (-40℃~+120℃) and UV aging. Transmittance drops by less than 5% per year with long use—more durable than plastic guides.
• Even light output: Some have tiny surface structures that turn uneven incoming light into even outgoing light. No extra parts needed to make light even, simplifying system design.

Applications

1. Lighting and Display
   • Car lighting: Transmit LED light in car lights (like daytime running lights or dashboard backlights). Guide light to target areas for even glow, saving space.
2. Industrial and Testing Equipment
   • Machine vision lighting: In industrial camera inspection systems, guide rods send light to the test area for even illumination. Help cameras catch details (like chip scratches or part sizes).
   • Laser processing support: Work with laser markers/cutters to send positioning light, making sure the laser focus lines up with the processing spot.
3. Medical and Bio-Optics
   • Medical endoscopes: Thin guide rods send cool light into minimally invasive endoscopes, lighting internal tissues. Avoids heat damage from traditional bulbs while keeping images bright.
   • Bio-testing tools: Transmit excitation light in fluorescence detectors, focusing it on samples. Reduces light loss and boosts test signal strength.
4. Sensing and Optical Communication
   • Optical sensors: In distance or liquid level sensors, guide rods send detection light, reducing interference from outside light. Improves sensing accuracy (e.g., ≤1% error for liquid concentration tests).
   • Short-range optical communication: Transmit light signals inside devices (like servers or routers). Replaces some optical fibers, cutting costs and fitting tight spaces.

How to Choose One

1. Pick material for light needs: Use BK7 glass for regular lighting (cheap). For UV tests or high-temp areas (like near industrial furnaces), choose fused silica. For hard, scratch-resistant needs (like medical tools), pick sapphire.
2. Match size to device space: Choose cross-section size (leave 0.5-1mm gap) and length based on where it’ll be installed. For micro sensors, go for round rods ≤1mm in diameter.
3. Optical specs depend on use: For long-distance transmission (>300mm), pick high-efficiency ones (≥90%). For lighting, focus on even output (≥85%). For UV/infrared use, make sure the transmittance range covers your target light.
4. Adapt to environment: For humid areas (like medical devices), get ones with anti-fog coatings. For vibrating scenes (like cars), choose rods with reinforced ends. For high temps, skip regular glass—go for quartz.
5. Balance cost and quantity: Regular specs (like BK7 round rods) are cheap in bulk. Custom or high-precision ones need to be made to order—check if mass production is feasible before ordering in large quantities.
