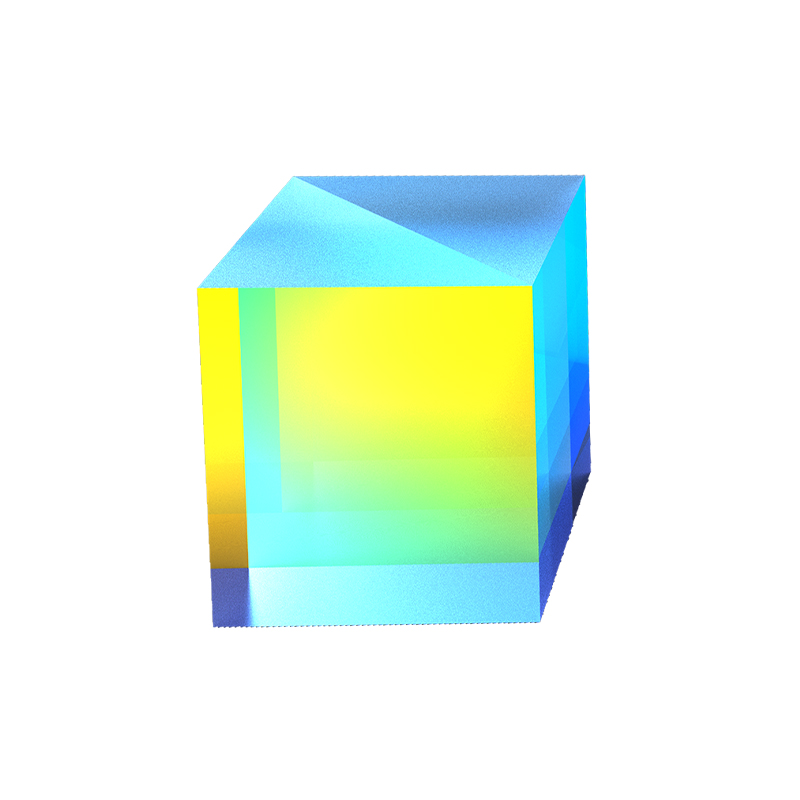

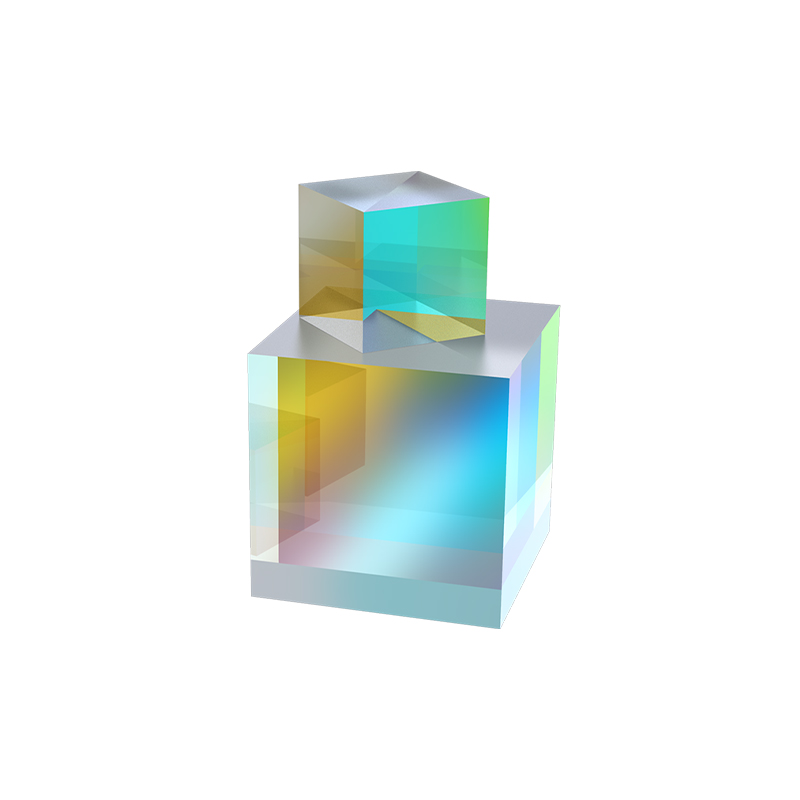

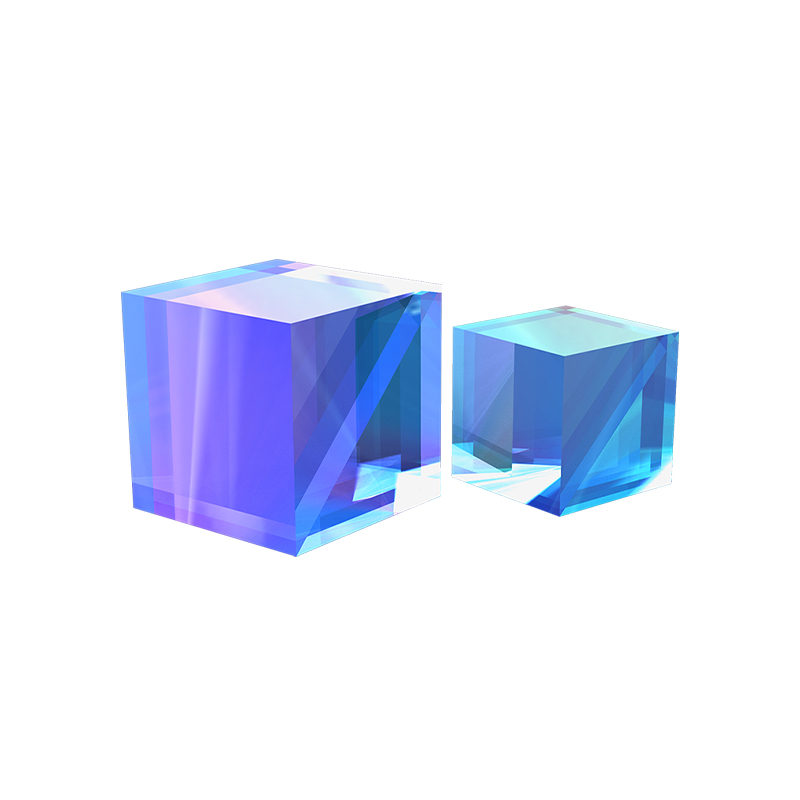

Polarization Beamsplitter Cube High Extinction Ratio and Low Loss

1. Working Principle & Structure

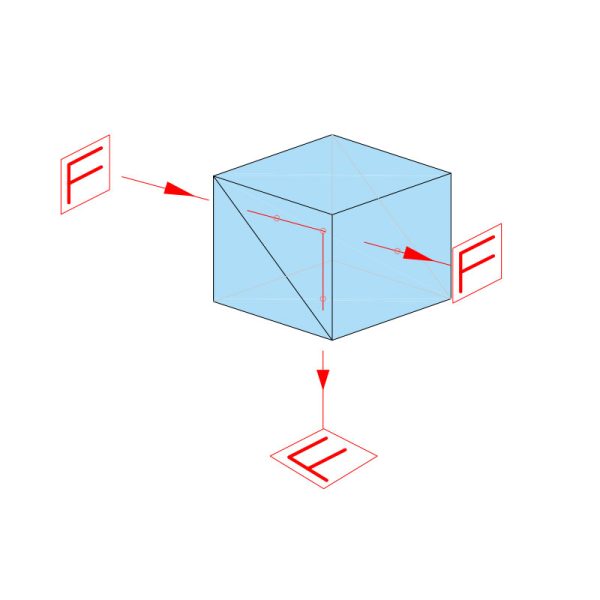

1. Cube PBS: Composed of two right-angle prisms with dielectric coatings (e.g., TiO₂/SiO₂) on the diagonal surface; transmits p-polarized light, reflects s-polarized light.
2. Plate PBS: Designed with polarization-sensitive coatings, optimized for specific incidence angles.

2. Materials & Manufacturing

1. Crystal Types: Calcite: High birefringence, ideal for visible to NIR applicationsQuartz: Lower birefringence, supports broader UV-NIR range
2. Glass Substrates: Optical glasses (e.g., N-BK7) offer cost-effective coated PBS alternatives
3. Bonding Process: UV-cured or epoxy adhesives ensure uniform optical contact and stability

3. Core Optical Features

1. Polarization Efficiency: T(p) > 99%, R(s) > 99%, extinction ratio > 1000:1
2. Spectral Range: Crystal PBS: narrowband (~±20nm)Coated PBS: broadband (400–1600nm)
3. Incidence Angle: Cube PBS optimized at 0°, with tolerance ±5°
4. Laser Power Handling: Crystal: >100 MW/cm²Coated: typically <10 W (CW)

4. Applications

1. Laser Systems
   PBS enables precise polarization control in laser systems, allowing separation of pump and signal beams in fiber lasers to enhance stability. It also supports dual-beam output in laser marking and cutting, improving processing efficiency and material absorption.
2. Optical Communication
   In optical communication, PBS is used for PMD compensation in DWDM systems and forms a key component in optical circulators when combined with Faraday rotators. These functions support high-speed data transmission and reliable signal routing in fiber networks.
3. 3D Display & Machine Vision
   PBS separates polarized light in passive 3D projection systems, enabling clear stereoscopic imaging. In machine vision, it helps detect surface features and defects by analyzing polarization contrast, improving accuracy in quality inspection.
4. Scientific Research
   PBS plays a vital role in interferometry and quantum optics experiments. It enables precise polarization analysis in applications like FTIR spectroscopy and photon entanglement studies, supporting high-precision measurements and fundamental research.
5. Biomedical Optics
   In medical applications, PBS ensures safe and efficient laser polarization control in ophthalmic surgeries. It also enhances polarizing microscopy for observing birefringent biological samples, aiding in diagnostics and tissue analysis.

5. Design Considerations

Match wavelength range (e.g., calcite for visible, Ge-coated for IR)

Select the extinction ratio based on the application:

• 10⁴: 1 for quantum optics
• 0³: 1 for industrial lasers

Ensure power thresholds are compatible with laser system type (CW or pulsed)
