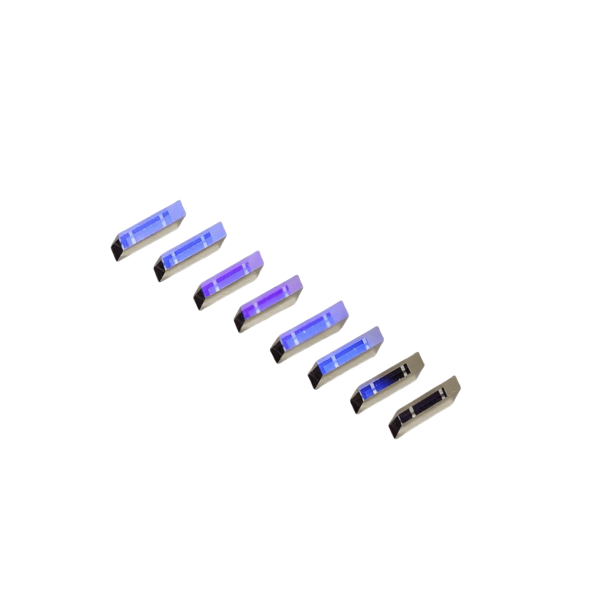

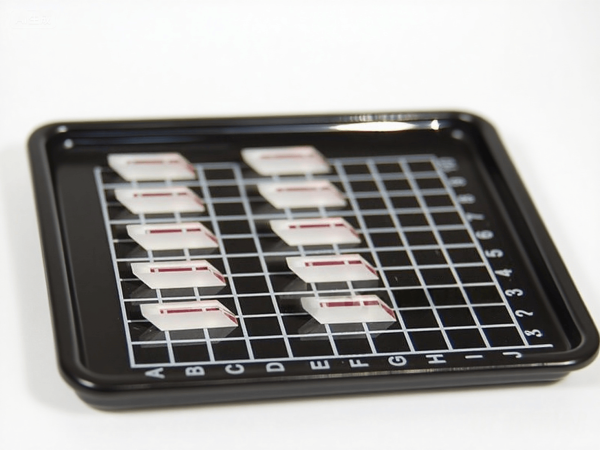

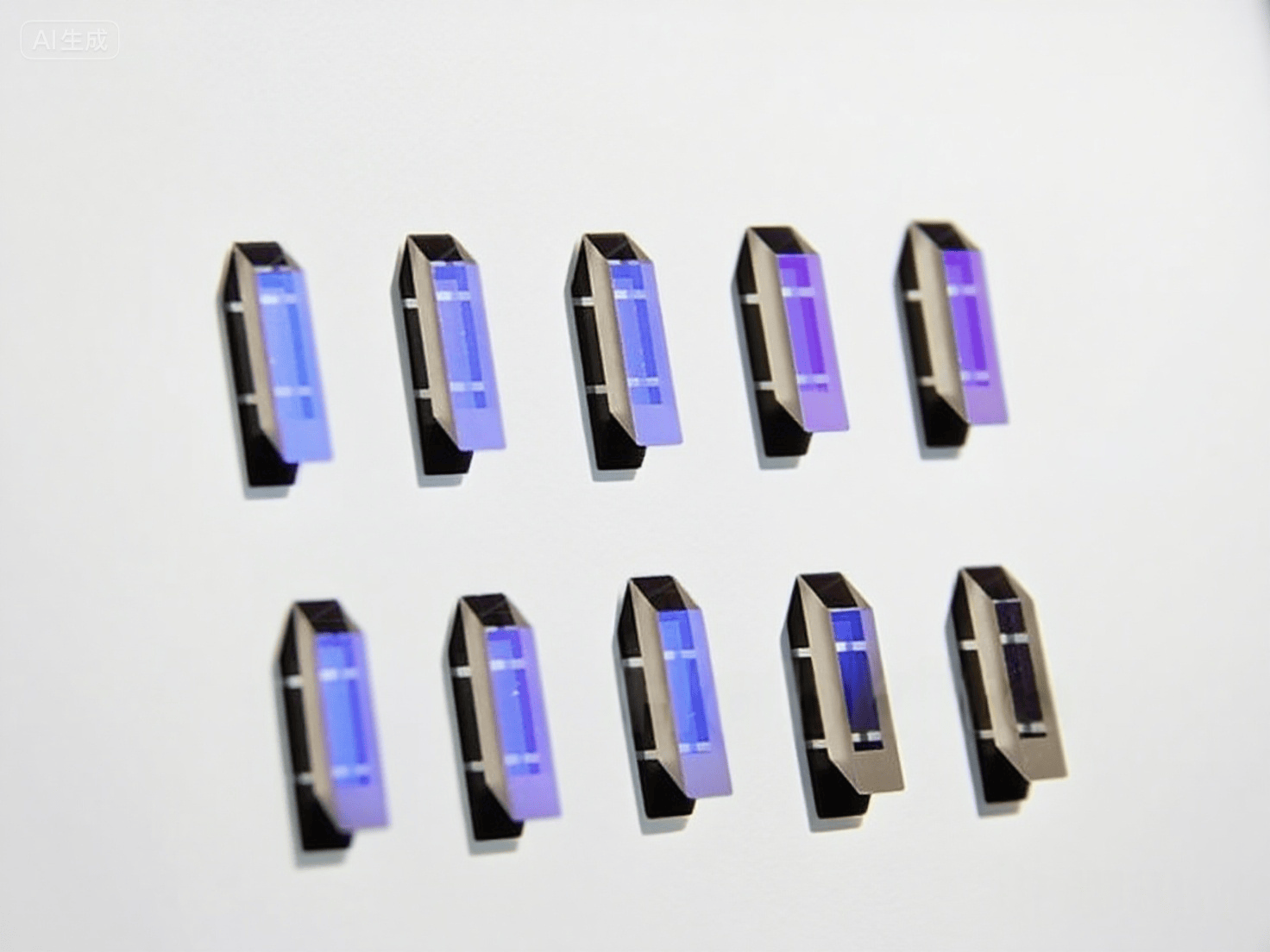

Highly Stable Zero-image Rotation Rhombic Prism

Key Features

Rhombic prism is an optical parts that shift light beams sideways without changing their direction. Here’s what makes them special:

• Precise Sideways Shifting: They move light straight sideways using two reflections. You can control how far the light shifts (shift distance = prism thickness × sinθ, where θ is the angle of the reflective surface) with accuracy down to ±0.01mm.
• No Direction Change or Distortion: Unlike some prisms that bend light, these just move the beam sideways. The image stays the same—no flipping or spinning. They also keep the light’s polarization and phase intact.
• Stable Reflection: When light hits the surface at the right angle, it reflects over 99.5% of the light without needing extra coatings. Made of one solid piece of glass, they handle temperature changes and vibrations well, staying accurate for years (<0.05% loss in precision per year).
• Works with Many Light Types: They can be made from materials like BK7 glass, fused silica, or sapphire. This lets them work with light from ultraviolet (200nm) to infrared (12μm) and handle laser power from small (milliwatts) to large (hundreds of watts).

Common Uses

Optical Tools and Cameras

• Microscopes and Telescopes: They shift light to avoid blocking parts like stages or lenses. For example, in metal-studying microscopes, they move the light beam to prevent the stage from getting in the way, keeping images clear.
• Cameras and Projectors: Rhombic Prisms help fit more parts into small spaces. In compact projectors or cameras, they shift the light path to make the device smaller, especially in foldable designs.

Laser Technology

• Laser Cutting/Marking Machines: They move the laser beam to avoid other parts in the light path (like beam expanders or galvanometers), so no light gets wasted.
• Laser Communication: They slightly shift the laser to fix small installation mistakes, making sure the laser signal connects well to the fibers.

Measurement Tools

• Interferometers and Spectrometers: They shift reference light or signal light to stop overlap, making measurements clearer and more accurate.
• 3D Scanners: Rhombic Prism adjust where the projected light hits, letting the scanner cover more area while keeping measurements precise.

Military and Space Tech

• Periscopes: They let you see around corners by shifting light in tight spaces, like in submarine periscopes, without distorting the image.
• Satellite Cameras: They adjust the light path to fit the satellite’s design, making sure the photos taken from space are geometrically accurate.

How to Choose

• Know How Much Shift You Need: Pick the size based on how far you need the light to move (usually 5-50mm). For precise tools like interferometers, make sure the shift stays straight (≤3 arcseconds off) and the reflective surfaces are angled accurately (≤±5 arcseconds).
• Material: Use BK7 glass for visible light (cheap and clear). For ultraviolet or hot environments, choose fused silica (handles UV and heat well). For infrared light (3-12μm), use germanium or zinc selenide. For strong lasers, pick sapphire (tough and damage-resistant).
• Optimize Optical Performance: If light hits the surface at a steep enough angle, no coating is needed—they’ll reflect over 99.5% of the light. If not, add a high-reflective coating to reduce light loss. For clear images, pick a smooth surface (Ra≤0.5nm for sharp imaging).
• Fit Your Environment: Make sure the size fits your device, leaving 3-5mm for adjustments. For vibrating setups, use tough materials like sapphire and secure the prism tightly. For wet or corrosive places, add an anti-corrosion coating (like magnesium fluoride).
