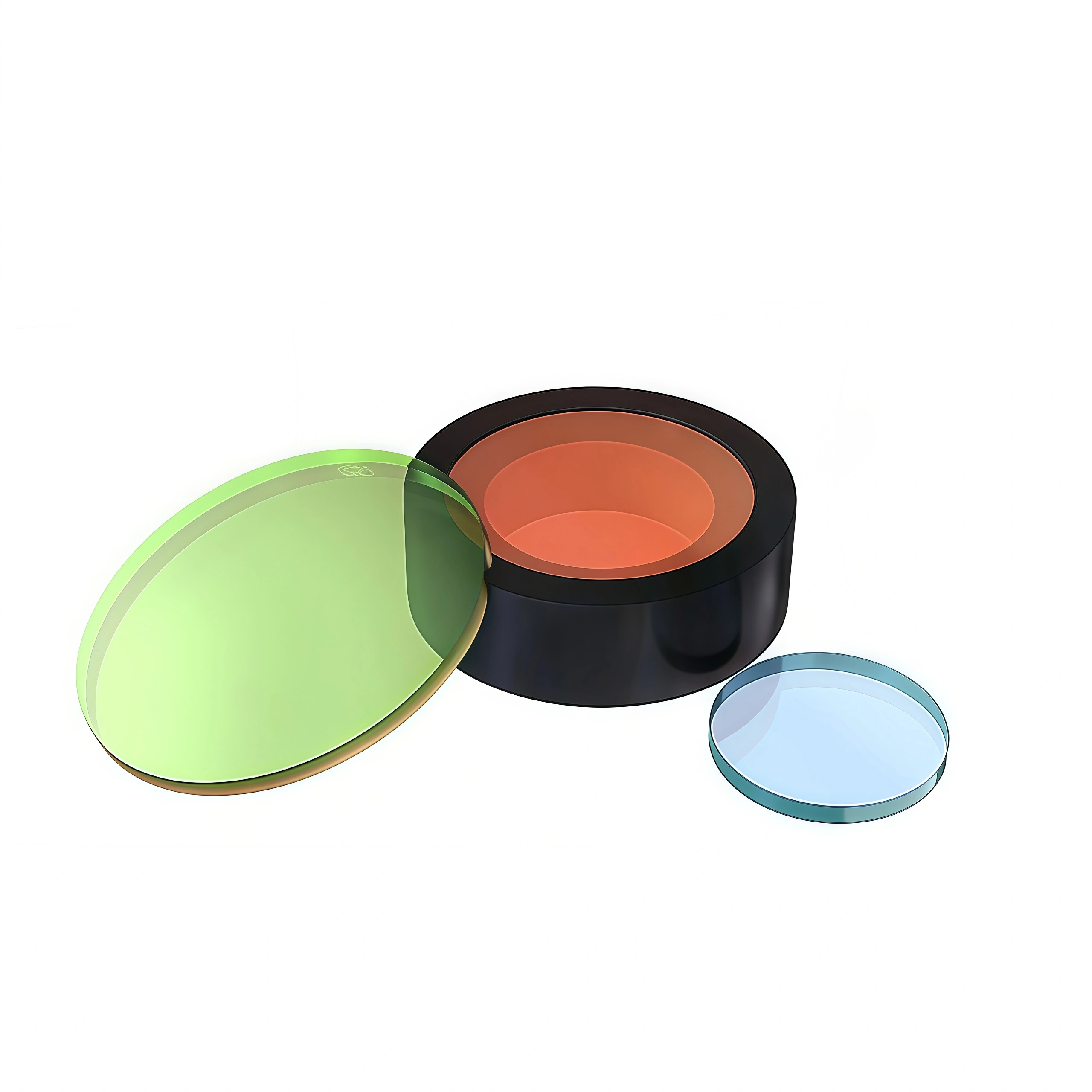

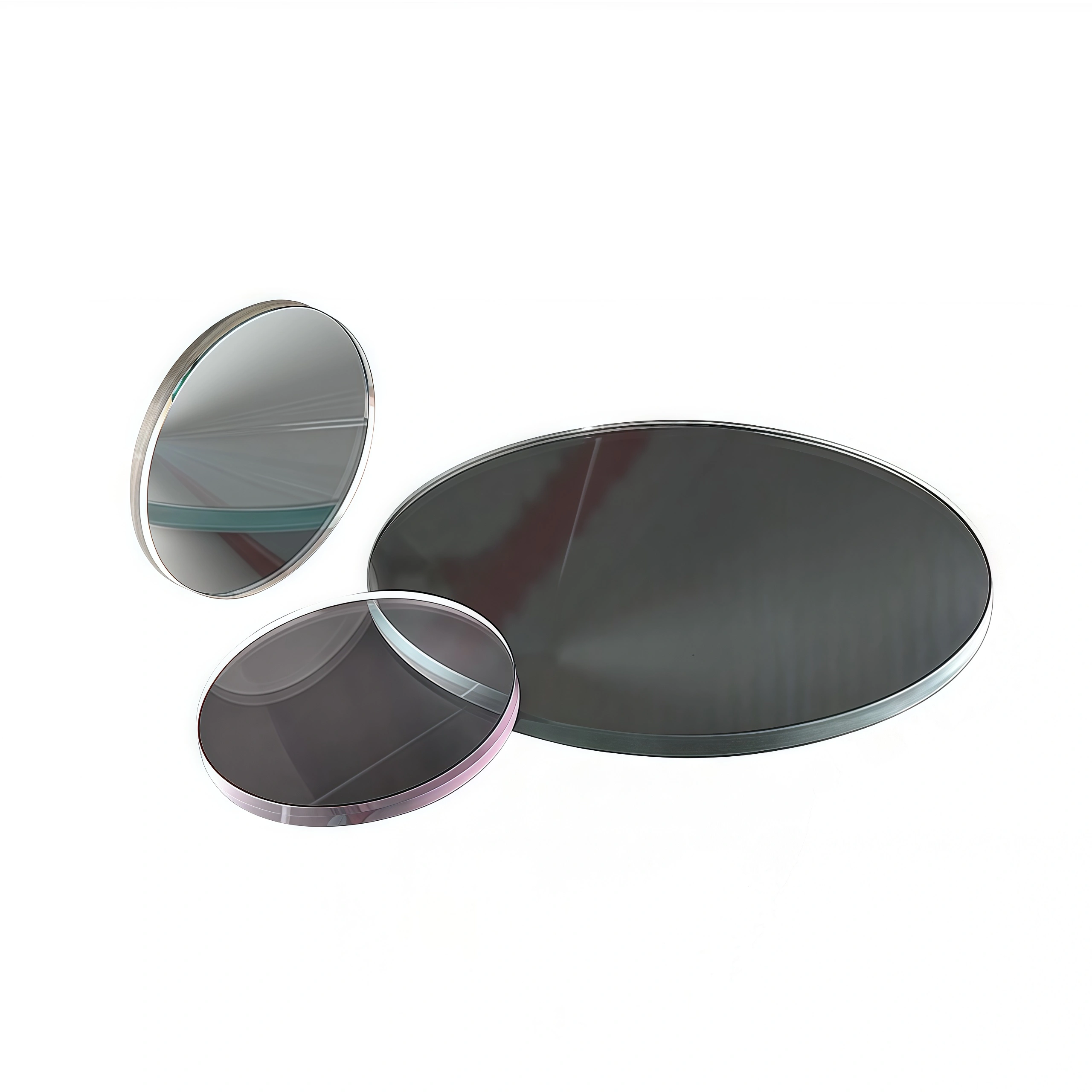

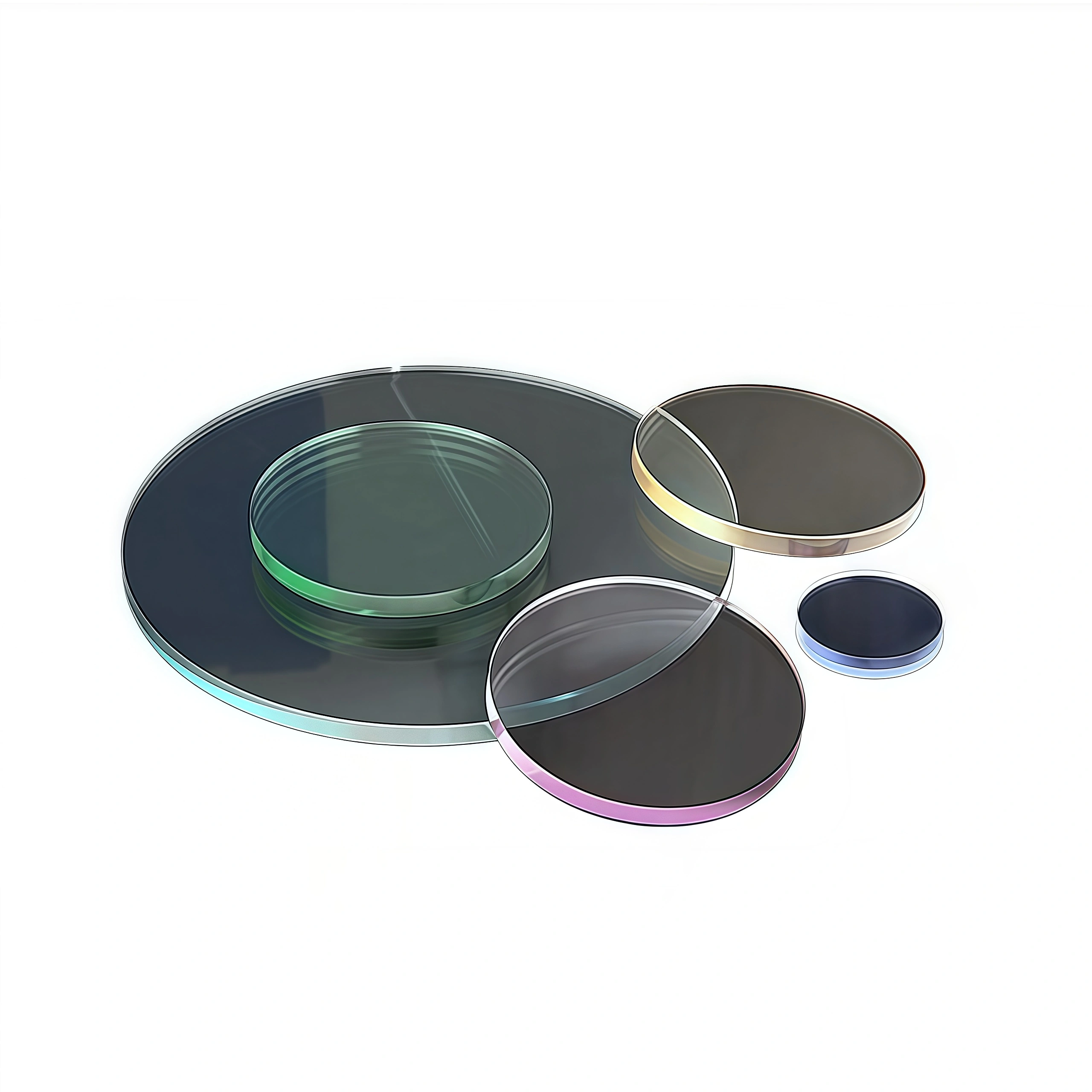

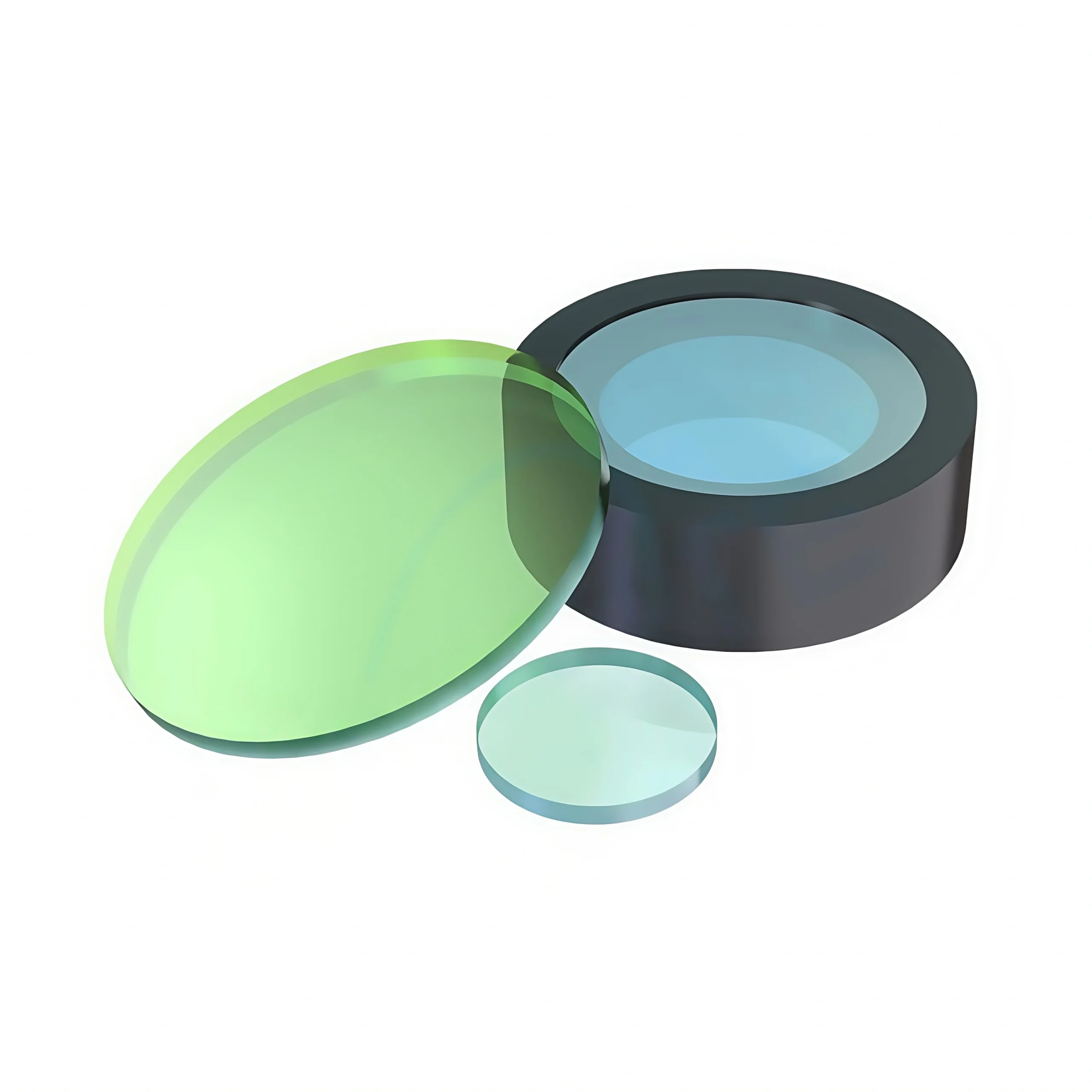

Precision Zero Order Waveplates for Stable Polarization Control
Zero Order Waveplates are high-precision optical components designed to rotate or control the polarization of laser beams with minimal wavelength dependence. Their compact design and stable performance make them ideal for integration into advanced optical systems.
Feature:
- High-quality birefringent crystal for precise polarization rotation
- Minimal wavelength sensitivity ensures consistent performance across the specified range
- Superior surface flatness and polishing for low wavefront distortion
- Available with AR coatings or custom coatings for UV, Visible, and NIR applications
- Custom sizes and orientations to support compact, integrated optical setups
Application: Polarization control in laser systems, optical experiments, quantum optics, microscopy, spectroscopy, and other precision optical instruments.
Share to:
Ultra-Thin Design for Stable Polarization Retardation
Zero order waveplates achieve precise retardation (λ/2 or λ/4) through extremely thin birefringent layers, where the optical path difference equals only the desired phase shift (m = 0). This structure significantly reduces dispersion-induced retardation error across wavelengths.
2. Material Options and Fabrication
True Zero-Order: Made from a single ultra-thin birefringent crystal (e.g., quartz, mica) with thickness typically in the 10–30 μm range, manufactured via ion beam etching or nanometer-scale polishing.
Fake Zero-Order: Constructed by stacking first-order waveplates with opposing retardations, resulting in a residual phase shift of zero order. Offers cost benefits while moderately improving stability over first-order designs.
3. Core Optical Advantages
Broadband & Temperature Stability: Quartz-based zero order λ/2 waveplates retain <1% retardation error over ±50 nm and show thermal drift <0.001°/°C, making them ideal for high-power or outdoor systems.
High Polarization Accuracy: Enables precise transformation between linear and circular polarization, or polarization axis rotation, with extinction ratios >1000:1.
Compactness & Versatility: Its ultra-thin structure enables easy integration into fiber systems, microscopy, or compact beam shaping modules.
4. Typical Applications
Laser Systems & Fiber Optics
- Regulate intra-cavity polarization in fiber lasers (e.g., Er-doped at 1550 nm).
- Adjust PMD in DWDM systems for high-speed data transmission.
- Convert circular to linear polarization in CO₂ laser cutting systems.
Precision Optical Measurement
- In ellipsometry, analyze thin film coatings via polarization modulation.
- Improve fringe contrast in interferometry(e.g., Michelson configuration).
Medical & Biomedical Imaging
- In laser eye surgery, maintain the beam shape and polarization to avoid thermal damage.
- Pair with polarizers in microscopes to detect birefringent biological structures.
Display & Consumer Electronics
- In 3D glasses, separate polarization states for stereoscopic display.
- Suppress background light in optical touchscreens and fingerprint sensors.
Aerospace & Quantum Optics
- In quantum entanglement sources, precisely control polarization for high-fidelity QKD.
- In satellite spectrometers, resist harsh thermal cycling (–50 °C to +80 °C) while preserving retardation accuracy.
5. Comparison of Common Structures
| Type | Structure | Wavelength Sensitivity | Thermal Stability | Key Use Cases |
| True Zero-Order | Single thin birefringent crystal | Very Low (Δλ/λ < 5%) | Excellent (ΔT < 100°C) | Quantum optics, high-end laser processing |
| Fake Zero-Order | Stacked compensated waveplates | Low–Medium (Δλ/λ < 10%) | Moderate (ΔT < 50°C) | Industrial lasers, instrumentation |
| Parameter | Specification |
| Retardation Type | λ/2 (half-wave), λ/4 (quarter-wave), custom available |
| Material Options | Quartz, Mica, Polymer (PMMA) |
| Design Type | True Zero-Order / Compensated (Fake) Zero-Order |
| Wavelength Range | Quartz: 180–2000 nm; Mica: 400–700 nm |
| Retardation Accuracy | ±0.5° (true zero-order); ±1–2° (fake zero-order) |
| Extinction Ratio | ≥ 1000:1 |
| Damage Threshold | > 500 MW/cm² (quartz); varies by coating |
| Surface Quality | 20/10 or 40/20 (MIL-PRF-13830 or ISO 10110 standards) |
| Clear Aperture | ≥ 90% of diameter |
| Thickness | Typical: 10–30 μm (true zero-order); 1–2 mm (fake zero-order) |
| Coating Options | AR Coating (UV-VIS-NIR), Custom broadband or laser-line options |
| Operating Temperature Range | –50°C to +85°C |
| Mounting | Unmounted, mounted in anodized metal ring, or custom holder |
