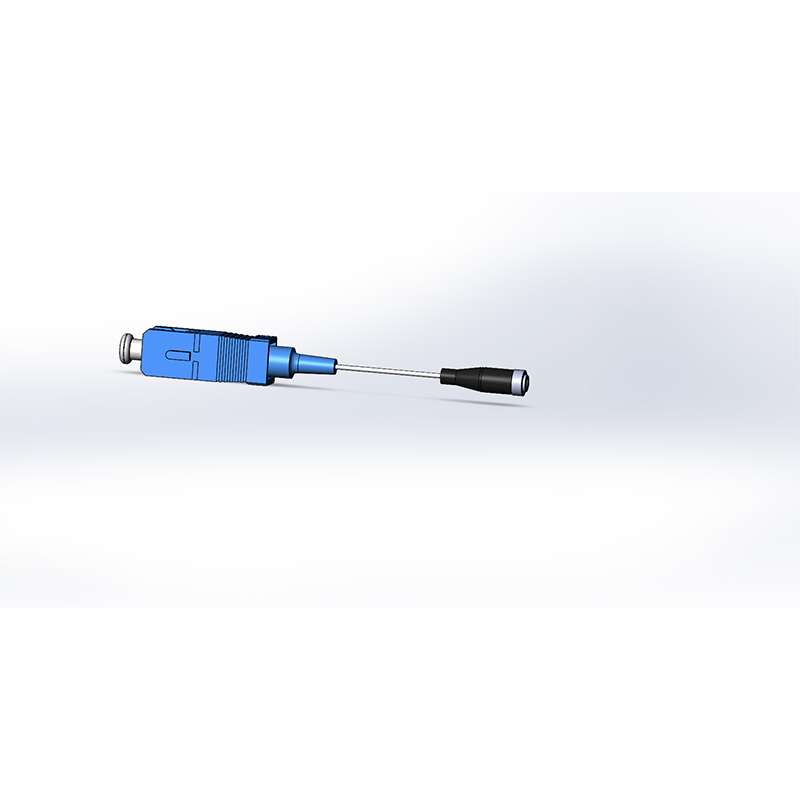

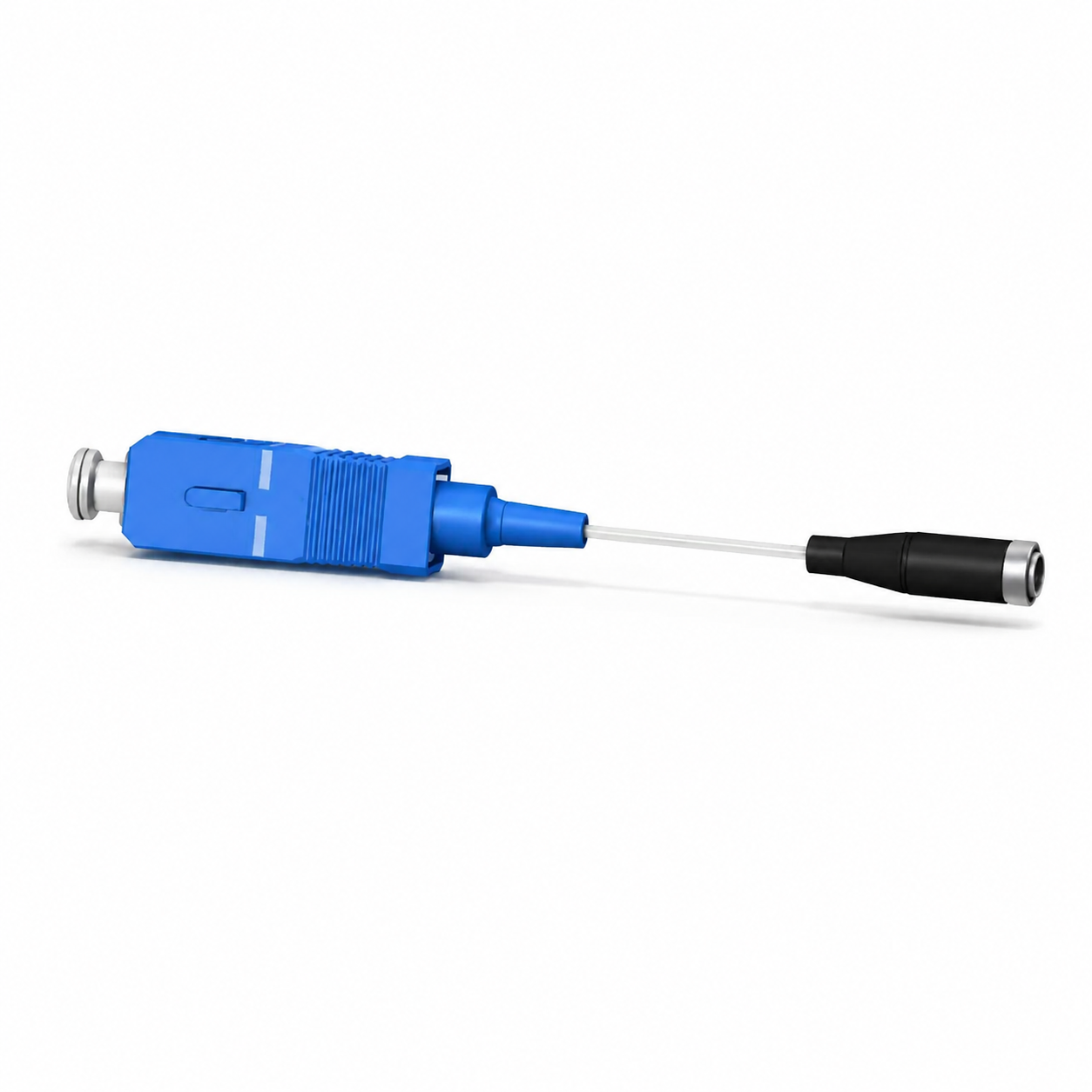

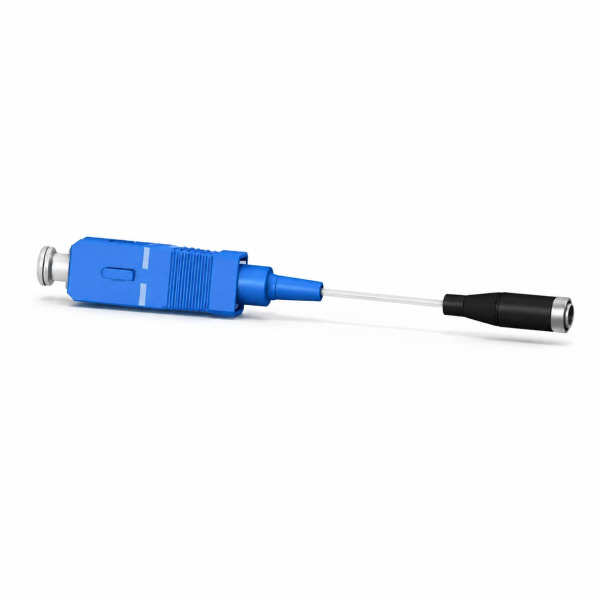

Customized Ferrule Collimators for SM-MM and PM Fiber

Application

1· Optical Communication Systems

In high-speed optical communication networks, ferrule collimators are indispensable. They are used to connect optical fibers with optical transmitters and receivers, ensuring that the light emitted from the fiber is precisely collimated into the optical device and vice versa. In wavelength-division multiplexing (WDM) systems, ferrule collimators help to accurately couple light of different wavelengths into the fiber, reducing signal loss and crosstalk. Their ability to maintain stable optical alignment over a wide temperature range makes them suitable for long-distance and high-capacity communication links, enhancing the overall reliability and performance of the network.

2· Optical Testing and Measurement Equipment

Optical testing instruments such as optical power meters, spectral analyzers, and interferometers rely on ferrule collimators. These collimators are used to direct the light source to the device under test and accurately collect the reflected or transmitted light. For example, in fiber optic loss testing, the ferrule collimator ensures that the light is properly coupled into the fiber under test, enabling precise measurement of insertion loss and return loss. In interferometric measurements, the high-precision collimation provided by ferrule collimators helps to create stable interference patterns, which are crucial for accurate distance and displacement measurements.

3· Laser Processing Equipment

In laser cutting, welding, and marking machines, ferrule collimators play a key role in shaping and directing the laser beam. They are used to collimate the laser beam emitted from the laser source, making it more concentrated and increasing its energy density. This enhanced beam quality allows for more precise and efficient material processing. Additionally, ferrule collimators can be used to couple the laser beam into optical fibers for remote delivery, enabling flexible laser processing setups. The metal package of the ferrule collimator can be customized to withstand the harsh environment and high-power operation in laser processing equipment.

4· Optical Imaging Systems

In optical microscopes and telescopes, ferrule collimators assist in optimizing the optical path. They can be used to collimate the light from the light source, ensuring uniform illumination of the sample in a microscope or improving the focusing performance of a telescope. In digital imaging systems, ferrule collimators are used to couple light from the optical lens into the image sensor, improving the light-gathering efficiency and image quality. Their ability to provide precise optical alignment helps to reduce aberrations and enhance the clarity and resolution of the captured images.

5. Optical Sensing Systems

For fiber optic sensors, ferrule collimators are essential for efficient signal transmission and reception. In strain sensors, temperature sensors, and pressure sensors based on fiber optic technology, the collimator is used to couple the light into the sensing fiber and collect the modulated light. By accurately collimating the light, the sensitivity and accuracy of the sensor are improved. In distributed sensing systems, ferrule collimators enable the multiplexing of multiple sensors on a single fiber, making it possible to monitor physical parameters over a large area with high precision.
