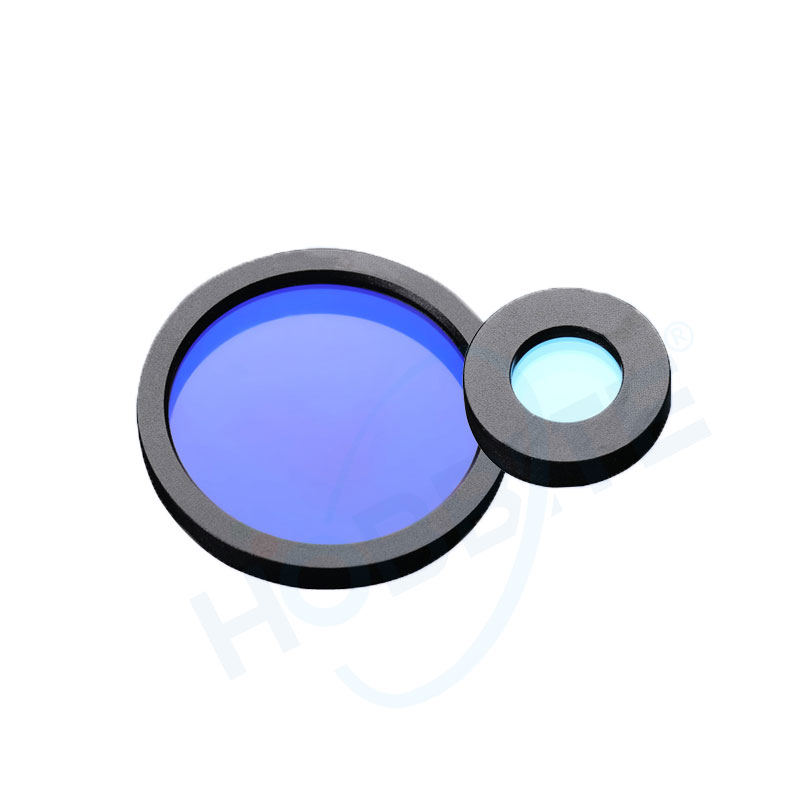

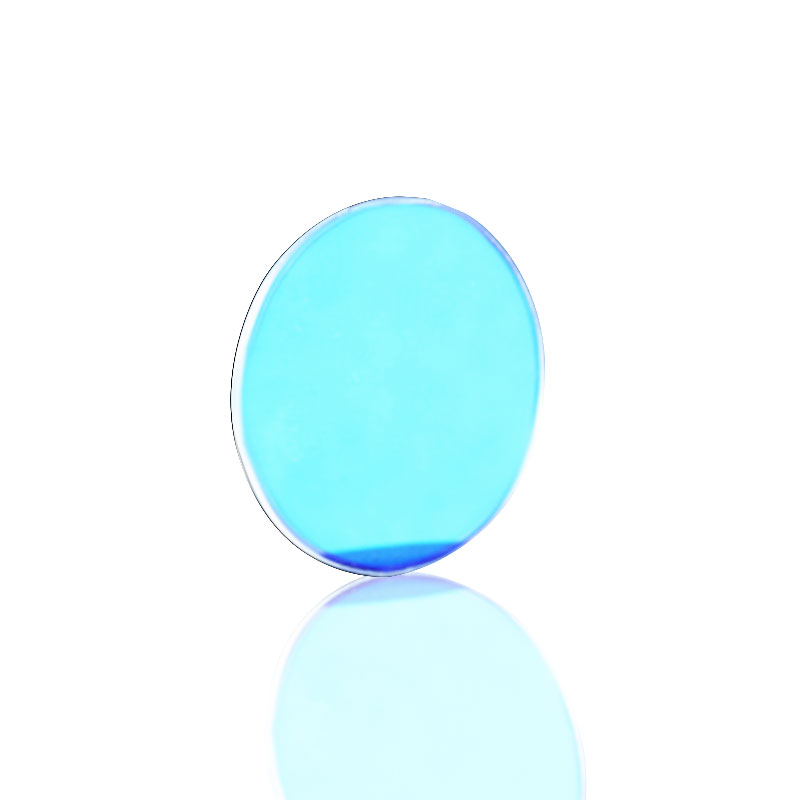

Low-Dispersion Polarization Control Achromatic Waveplate

Achromatic Waveplates are precision optical components designed to provide consistent polarization rotation across a broad wavelength range. Their superior material quality and low wavefront distortion make them ideal for demanding optical systems requiring stable and accurate performance.

Feature:

High-quality birefringent materials for consistent polarization control over multiple wavelengths
Low wavefront distortion and minimal wavelength dependence
Superior surface flatness and polishing for stable optical performance
Available with AR coatings or custom coatings for UV, Visible, and NIR ranges
Custom sizes and orientations to integrate seamlessly into compact optical setups

Application: Broadband polarization control in laser systems, microscopy, spectroscopy, quantum optics, optical communication, and advanced scientific instruments.

Share to:

Broadband Phase Retardation with Minimal Wavelength Dependency

Achromatic waveplates are engineered using multi-material cascaded structures (e.g., quartz + MgF₂ or quartz + mica) where each birefringent layer compensates for the wavelength dispersion of the others. This allows phase retardation variation to remain within <5% across wide spectral bands (e.g., 400–1000 nm), unlike standard waveplates that exhibit 50% phase deviation over the same range.

2·Optical and Material Characteristics

Composite Birefringent Layers:
Quartz offers high birefringence and UV-to-NIR transmittance, while MgF₂ or mica compensates for dispersion in the visible or IR ranges.

Precision Alignment:
Layer alignment tolerance is kept within <0.1°, ensuring high extinction ratios (up to 2000:1) and reliable polarization conversion.

High Damage Threshold:
Quartz-based achromatic designs withstand high-power lasers (>10 J/cm²), ideal for industrial and scientific applications.

3·Application Scenarios

Multi-Wavelength Laser Systems

In Q-switched or frequency-doubled lasers(1064nm + 532nm), achromatic λ/2 waveplates ensure synchronized polarization control.
Femtosecond lasers with broadband spectra use achromatic waveplates to maintain polarization uniformity, preventing pulse distortion.

Spectroscopy and Imaging

In white-light interferometers, achromatic λ/4 waveplates enable stable interference fringes across 400–700 nm.
In astronomical cameras, polarization analysis across bands aids in exoplanet imaging.

Optical Communication & Fiber Technology

In DWDM modules(C+L band: 1530–1625nm), they compensate for PMD, supporting >100Gbps rates.
Distributed fiber sensors benefit from stable polarization of probe beams for high-resolution measurements.

Medical and Industrial Laser Applications

In ophthalmic surgery systems, achromatic waveplates control polarization for both UV (193nm) and IR (810nm) lasers to reduce thermal impact.
Laser 3D printing uses them to unify polarization for 532nm and 1030nm lasers, improving weld quality.

Quantum and THz Research

In quantum key distribution (QKD), achromatic waveplates maintain polarization fidelity for entangled photons (810/1550nm).
In terahertz spectroscopy, they regulate THz polarization for biological and molecular analysis.

4. Comparison of Common Types

Type	Structure	Wavelength Range	Applications
Bimaterial Achromatic	Quartz + MgF₂ stack	400–1500 nm	Laser optics, broadband polarization rotation
Multilayer Film Achromatic	Polymer + metal oxide nanolayers	200–400 nm	UV lithography, curing systems
Broadband Zero-Order	Zero-order + achromatic design	800–1600 nm	DWDM, fiber sensing, quantum optics

Parameter	Specification
Waveplate Type	λ/2, λ/4, Zero-Order, Multi-Order Achromatic
Material Combinations	Quartz + MgF₂, Quartz + Mica, CaF₂ + Si, Polymer-based multilayers
Wavelength Range	200 nm – 12 μm (depending on design and material)
Retardation Tolerance	< ±3% standard, < ±1° precision for high-end systems
Damage Threshold	Up to 10 J/cm² (quartz-based), UV versions > 3 J/cm²
Extinction Ratio	≥ 2000:1 across designated bandwidth
Aperture Size	Ø5 mm – Ø50 mm
Surface Quality	20/10 or 40/20 (per MIL-PRF or ISO 10110 standards)
Mounting Options	Unmounted, black anodized aluminum ring mount, or custom options
Coating Options	AR coating (UV, VIS, NIR), custom broadband or narrowband coatings
Operating Temperature	-40°C to +85°C (material dependent)
