High-Precision Corner Cube Prisms for Reliable Retroreflection

 Key Features

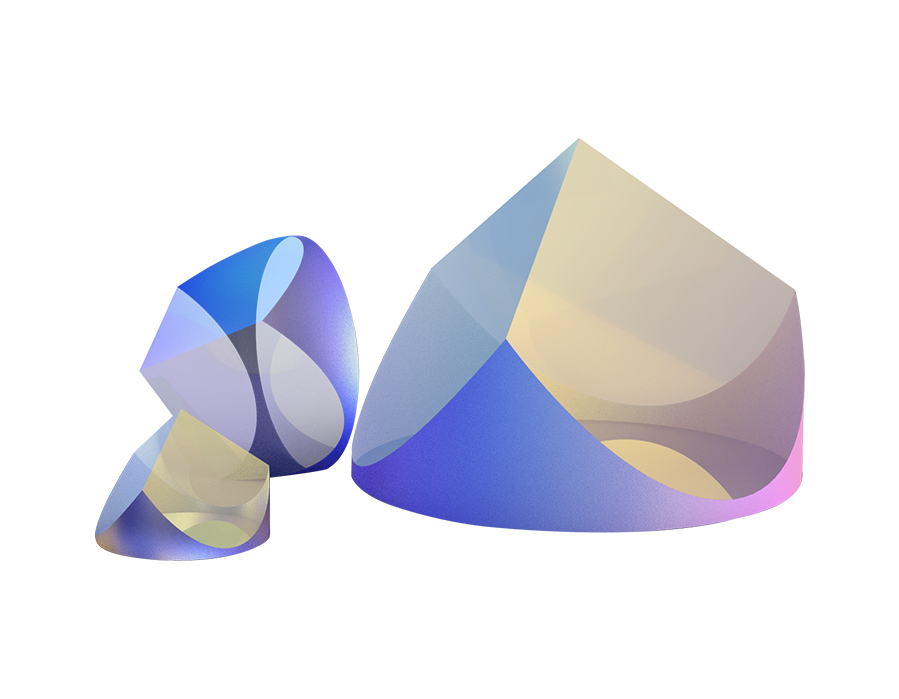

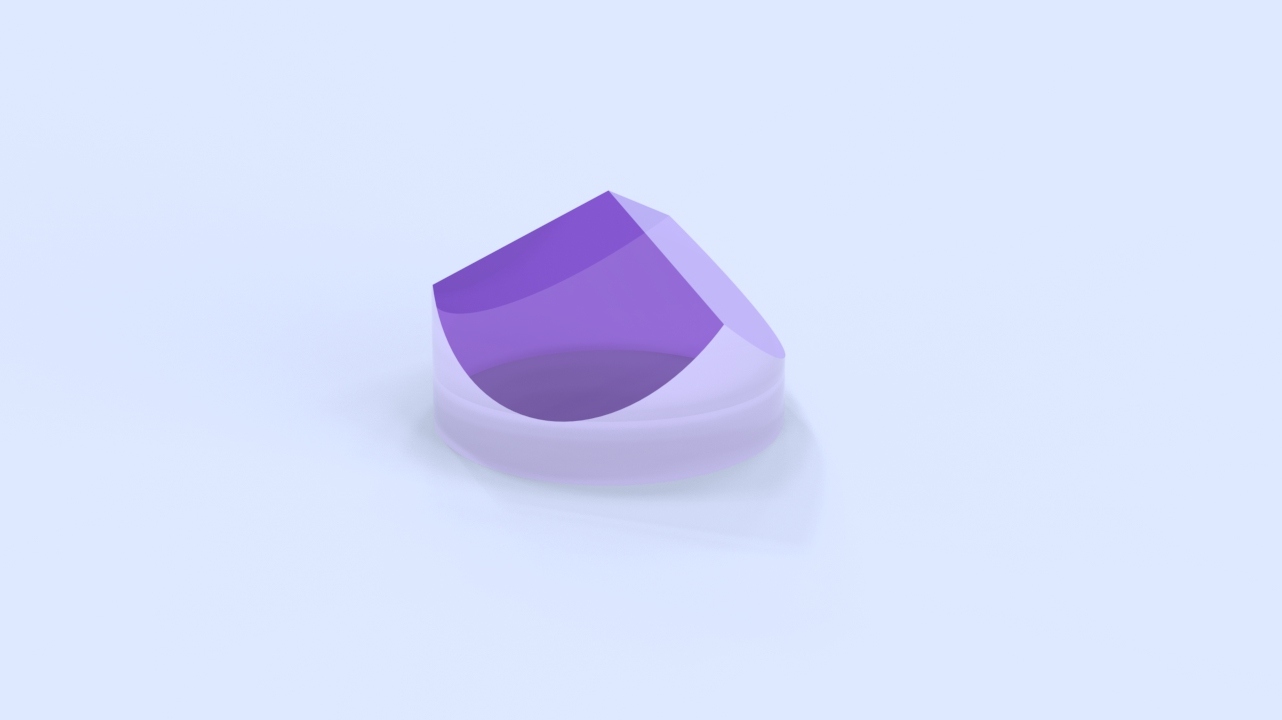

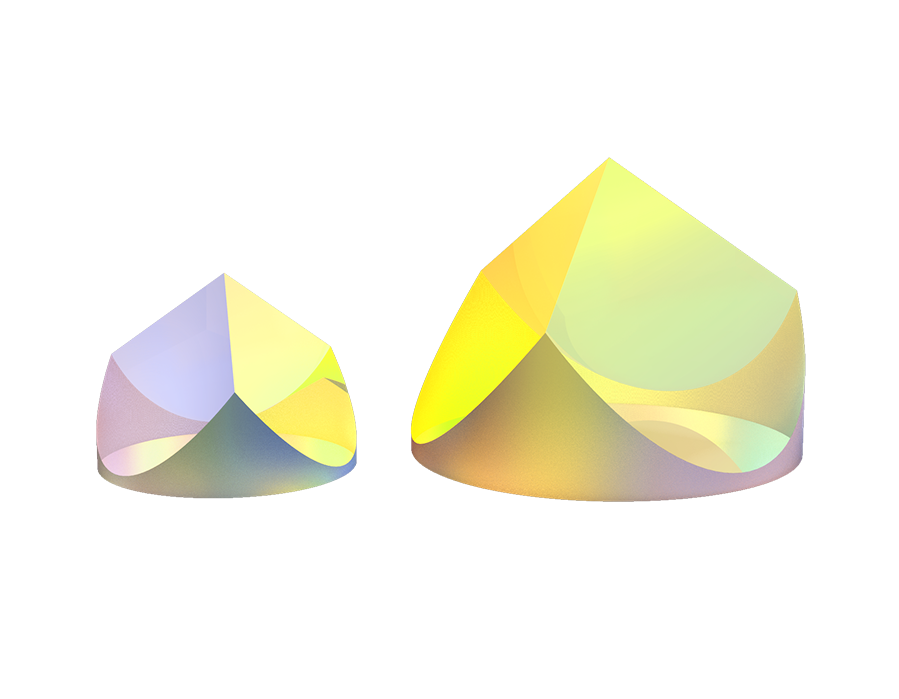

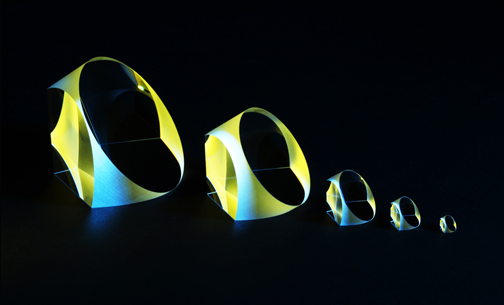

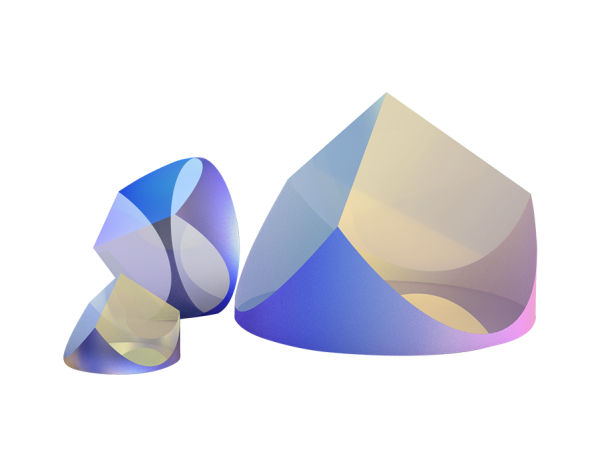

Corner cube prisms are optical components featuring three mutually perpendicular reflective surfaces. They reflect incident light directly back to its source, regardless of the angle at which the light strikes them. Here’s what makes them special:

• Reflects light back exactlyNo:  matter if light hits straight on, at an angle, or slightly tilted (within ±30°), it bounces right back to where it came from. No need for precise alignment.
• High reflectivity, low loss: Using total internal reflection or coated surfaces, they reflect over 99.5% of light. Little signal gets lost, making them great for long-distance light transmission.
• Tough and stable: Made of solid glass or crystal (like BK7, fused silica, or sapphire), they handle vibrations, temperature changes, and humidity well. Their reflection accuracy drops by less than 0.1% per year with long use.
• Flexible ranges: They work with light from ultraviolet (200nm) to infrared (15μm) and handle laser power from milliwatts to kilowatts.

Applications

Laser ranging and positioning

• Total stations and laser rangefinders: Act as “reflective targets” to bounce ranging lasers back to the device. They calculate distance using round-trip time, with accuracy up to ±1mm/km—key for construction or land surveying.
• Spacecraft docking: Satellites and spaceships have corner cubes. Ground lasers bounce off them, measuring position and speed precisely to keep docking safe.

Optical testing and calibration

• Optical system alignment: When building microscopes or telescopes, use corner cubes to reflect lasers. This checks if light paths are straight, making it easy to fix angle errors.
• Machine tool accuracy checks: Reflect lasers off them to test if machine rails are straight or spindles are vertical, improving how precise the machines can cut.

Laser communication and remote sensing

• Long-distance laser communication: Work as passive reflectors in harsh environments, bouncing signals back without needing power—great for remote area communication.
• Satellite calibration: Satellites carry corner cubes to reflect ground calibration lasers, making sure their cameras take accurate, well-aligned photos.

Industrial and military uses

• Factory robot positioning: In production lines, robots use corner cubes to reflect lasers, helping them find and grab parts with errors as small as 0.05mm.
• Military targeting: Used as reflective targets for laser-guided weapons or as beacons on tanks/ships, bouncing lasers to help aim precisely.

How to Choose

• Know your reflection accuracy needs: For regular surveying, pick ones with ≤1 arcminute return error. For spacecraft or high-precision tests, get high-precision ones (≤10 arcseconds) for stable signals.
• Match material to light and environment: Use BK7 for visible/near-infrared (cheap). For UV or high-temperature applications, choose fused silica—it performs well in both UV and heat. For infrared (3-15μm), use germanium or zinc selenide. For strong lasers, pick sapphire (hard to damage).
• Optimize optical performance: No coating needed for total reflection (reflectivity ≥99.5%). For long distances or low-angle light, add high-reflective coatings (like aluminum + protective layer) to boost reflectivity. Choose Ra≤0.5nm surface roughness to reduce light scattering.
• Fit size and environment: Pick a size that fits your space (leave 2-5mm for adjustments). For vibrating setups, use tough materials like sapphire and mount them securely. For wet or corrosive places, add anti-corrosion coatings (like magnesium fluoride).
