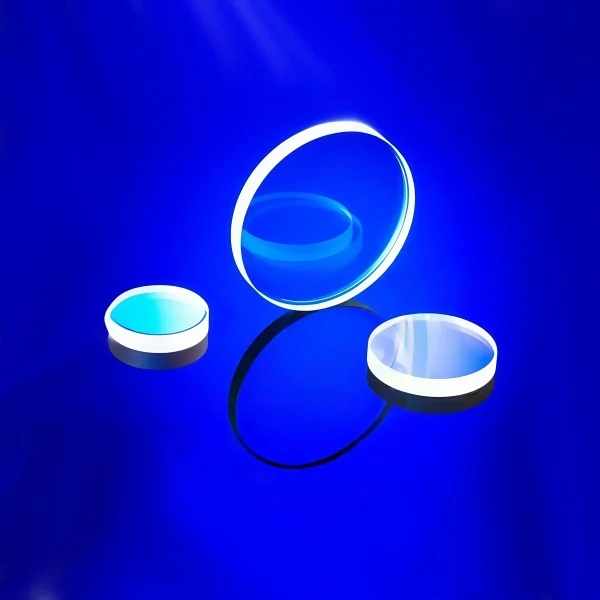

Crystal-Clear Low Distortion Fused Silica Window

1. Material and Fabrication Properties

Chemical Composition: Fused silica window purity >99.99%, almost free of metallic impurities, with amorphous (non-crystalline) structure to avoid birefringence.

Manufacturing Process:

• Melting method: Quartz sand is melted at >1700℃, cooled, and double-side polished to optical flatness;
• Size range: Diameter 120mm, edges can be chamfered or frosted.

2. Physical Structure Features

• Uniformity: Density 2.2g/cm³, bubble-free, refractive index uniformity <10⁻⁶, suitable for high-precision optical systems.
• Surface Quality: Polished to surface roughness Ra<1nm, flatness λ/10~λ/100 (λ=633nm), customizable with anti-reflective or hard coatings.

3. Core Optical and Physical Characteristics

Broadband Transmittance: Transmits from 185nm (deep UV) to 2.2μm (near-IR), with >90% transmittance at 193nm lithography wavelength, superior to common optical glass.

Low Thermal Expansion: Thermal expansion coefficient α=0.55×10⁻⁶/℃ (20℃), near-zero expansion, ideal for temperature-fluctuating scenarios (laser processing, aerospace).

High Laser Damage Threshold: Nanosecond pulse damage threshold >10J/cm² (1064nm), continuous laser tolerance >100W/cm², suitable for high-power laser systems.

Chemical Stability: Fused silica window resistant to strong acids (except hydrofluoric acid) and high temperatures (softening point >1600℃), with  strong radiation resistance (<5% transmittance loss after γ-ray irradiation).

4. Application

Lithography & Semiconductor Manufacturing

• Photolithography Mask Protective Window: In 193nm ArF lithography systems, serves as a mask protective layer with flatness λ/100 and transmittance >98% to ensure exposure pattern precision.
• Etch Chamber Viewport: In plasma etching equipment, resists fluorine-based gas corrosion, maintaining transmittance to avoid chamber contamination affecting etch uniformity.

Laser Technology & Processing

• High-Power Laser Isolation Window: In fiber lasers (10kW class), acts as an optical cavity seal with 1064nm AR coating (reflectivity <0.1%) to minimize energy loss.
• Laser Marking/Cutting Head Window: Withstands spatter impact during laser processing while maintaining high transmittance for focused spot quality (e.g., automotive battery tab cutting).

Aerospace & Remote Sensing

• Satellite Optical Payload Window: Spectrometer window for earth observation satellites, resisting extreme space temperatures (-100~+120℃) and micro-meteorite impacts to maintain imaging resolution.
• Infrared Telescope Window: Achieves >85% transmittance in the 8~12μm band for thermal imaging satellites or ground-based IR observatories, reducing atmospheric interference.

Scientific Research & Analytical Instruments

• Vacuum Chamber Viewport: In scanning electron microscopes (SEM) or molecular beam epitaxy (MBE) systems, it serves as a vacuum-sealed window allowing electron beams or lasers to pass through.
• Spectrometer Beam Splitting Window: Maintains low absorption in the 200~800nm band for UV-Vis spectrometers, ensuring spectral measurement accuracy (e.g., water quality monitors).

Medical & Life Sciences

• Laser Surgical Device Window: In femtosecond laser eye surgery (e.g., SMILE), acts as an optical path window withstanding 1053nm laser pulses (energy density >500mJ/cm²).
• Biological Culture Viewport: Transparent window for cell culture incubators, chemically inert to avoid contamination, supporting real-time fluorescence microscopy.

5. Selection and Design Considerations

Wavelength Range Matching: Choose fused silica window with a 185nm UV cutoff for UV applications, or 2.2μm IR cutoff for IR, avoiding out-of-band absorption.

Mechanical Strength Design: For large windows (>100mm), calculate bending strength (fused silica flexural strength ≈100MPa) to prevent stress-induced cracking during installation.

Coating Requirements: Laser applications need high damage threshold AR coatings (e.g., <0.2% total reflectance for 1064nm), while UV lithography requires 193nm-specific coatings.

Fused Silica Window plays a critical role in precision optics, high-power lasers, and extreme environments due to its high purity, broadband transmittance, and excellent physical stability. From nanometer-precision assurance in semiconductor lithography to radiation-resistant windows for space probes, its chemical inertness and thermal stability enhance the reliability of advanced optical systems, making it an indispensable basic optical component in modern optoelectronic technology.
